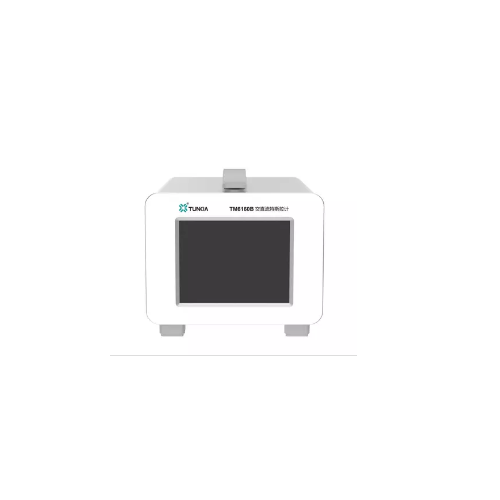

Tunkia TM6160B AC/DC Tesla-Meter (10 μT ~ 1 mT, 3mT ～ 3000mT)

- Coil Probe:

Range: 10 μT, 100 μT, 1 mT

Resolution: 1 nT, 10 nT, 100 nT

Accuracy: ± 0.2 μT, ± 2 μT, ± 20 μT

Measuring Range: 1 μT ~ 1 mT

Frequency Range: 45 Hz to 65 Hz

Display Digits: 5

- Hail Probe:

Range: 3 mT, 30 mT, 300 mT, 3000 mT

Resolution: 0.1 μT, 1 μT, 10 μT, 100 μT

Accuracy ±(ppm of reading + ppm of range):

DC: 1.0% + 0.05; 1.0% + 0.1; 0.5% + 1; 0.2% + 2

AC: 2% + 0.15, 2% + 0.2, 1% + 1, 1% + 2

Measuring Range: 0.3mT ～ 3T

Frequency Range: DC to 1kHz

Display Digits: 5

Remark:

1. (ppm = parts per million) (e.g., 10ppm = 0.001%)

2. Actual calibration only covers up to 2.5 T

-General Specifications:

Power Supply: AC ( 220 ± 22 ) V, ( 50 ± 2 ) Hz

Temperature Performance:

Operating temperature: 0°C～50°C

Storage temperature: -20°C ~ 70°C

Humidity Performance:

Operating humidity: 40% ~ 80 % R•H, non-condensing

Storage humidity: < 80% R•H, non-condensing

Altitude: < 3000 m

Weight: About 5 kg

Interface: RS232, Hall probe input, coil input interface

Dimensions: 185 mm (W) × 280 mm (D) × 170 mm (H)
