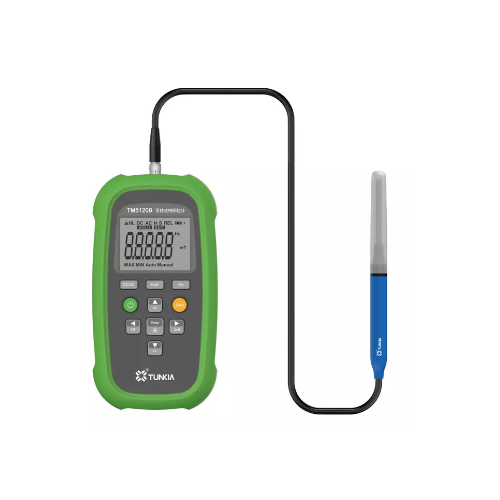

Tunkia TM5120B Hand-held Tesla-Meter (2mT～3000mT, Class 1)

- Range: 30 mT; Resolution: 1 μT

- Range: 300 mT; Resolution: 10 μT

- Range: 3000 mT; Resolution: 0.1 mT (1)

Measuring Range: 2mT～3000mT

Accuracy:

Class 1: DC：±1%，AC：±5%

Frequency Range: DC，40Hz~500Hz

Temperature Coefficient:± 0.1% / K

Zero Drift: ± 0.1 mT/h

Display Digit: 5

Remark: (1) Calibration only covers 2.5T

- General Specifications:

Power Supply: 3 AA batteries or USB charging

Temperature Performance:

Operating temperature: 0~50℃;

Storage temperature: -20°C～70°C

Humidity Performance:

Operating humidity: 40%～80% R•H, non-condensing

Storage humidity: <95% R•H, non-condensing

Weight: About 350 g

Interface: Hall probe input interface, USB interface

Overall Dimensions: 90mm(W) × 40 mm(D) × 165 mm(H)
