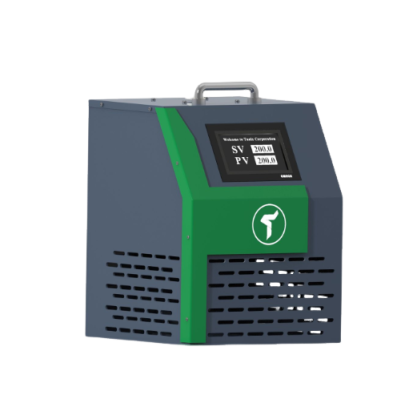

Tunix ED -30 X 200 B Dry Block Temperature Calibrator (Base model, -30~200°C)

Hi performance temperature dry block calibrator with single set point PID controller

Temperature Range: -30 to 200 °C.

Control accuracy: ±0.1 °C

Thermal stability:

± 0.01°C @ -30°C (calculated after stabilization time of 20 minutes)

± 0.02°C @ 0°C (calculated after stabilization time of 20 minutes)

± 0.01°C @ 100°C (calculated after stabilization time of 20 minutes)

± 0.01°C @ 200°C (calculated after stabilization time of 20 minutes)

Thermal Non uniformity (Radial):

± 0.03°C @ -30°C (calculated after stabilization time of 20 minutes)

± 0.02°C @ 0°C (calculated after stabilization time of 20 minutes)

± 0.02°C @ 100°C (calculated after stabilization time of 20 minutes)

± 0.045°C @ 200°C (calculated after stabilization time of 20 minutes)

Stabilization Time/settling time: 20 minutes after set point is achieved.

Power supply: 100-240 VAC @50-60 Hz.

Current : 3 A.

Power Consumption: Single phase, 1200 Watt maximum.

Sound: Less than 30 dB.

Weight: 25 kg

Storage Condition:

Ambient Temperature: 0 °C to 40 °C

Relative Humidity: up to 90% RH (Non condensing)

Fuse rating: 6 A.

Accessories: Carry bag, pointer puller, operating manual, ISO 17025 Accredited Calibration certificate(optional)
