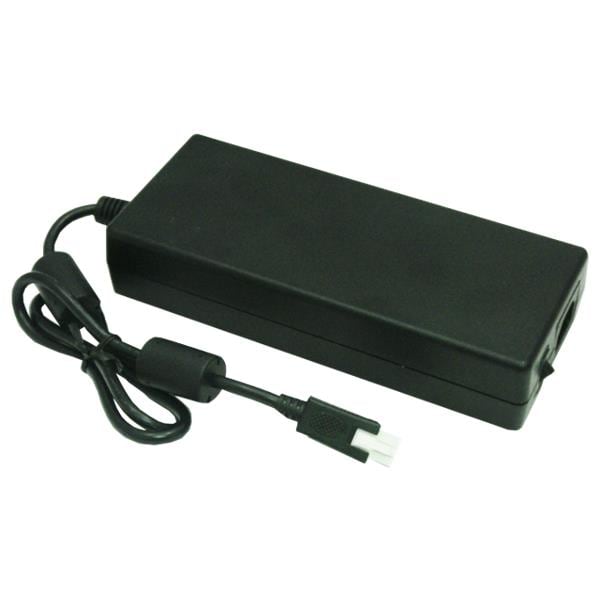

TT Electronics / Power Partners PUP270-13-2-S Desktop AC Adapters 270W/19V/14.21A ITE AC/DC DT C14 ON/OFF SW 6P MINI FIT

Width: 87.6 mm

Height: 41.5 mm

Length: 204 mm

Region: Universal

Industry: Industrial

Approvals: CSA 22.2, UL

Efficiency: Level VI

Unit Weight: 1.1 kg

Output Power: 270 W

AC Inlet Type: C14

Input Voltage: 90 VAC to 264 VAC

Connector Type: Rectangular Connector

Mounting Style: Desktop

Load Regulation: Not Regulated

Number of Outputs: 1 Output

DC Output Connector: 6 Pin JWT Mini Fit

DC Output Cord Length: 800 mm

Output Current-Channel 1: 14.21 A

Output Voltage-Channel 1: 19 VDC

AC Plug included/required: Required

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
