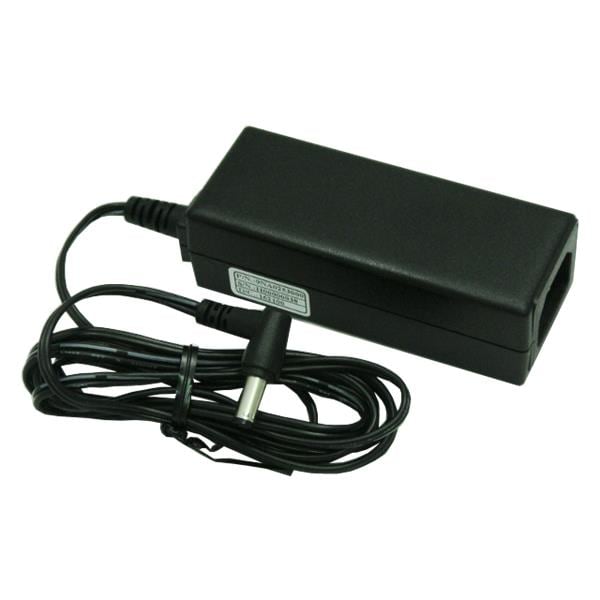

TT Electronics / Power Partners PUP25N3-13-2 Desktop AC Adapters 25W/19V/1.32A ITE AC/DC DT C14 RA 2.5x5.5x12

Width: 38.4 mm

Height: 29.6 mm

Length: 94 mm

Region: Universal

Industry: Industrial

Approvals: CSA 22.2, UL

Efficiency: Level VI

Unit Weight: 112 g

Output Power: 25 W

AC Inlet Type: C14

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Not Regulated

Center Pin Length: 12 mm

Number of Outputs: 1 Output

DC Output Connector: 2.5 mm Barrel Plug (2.5x5.5)

Connector A Polarity: Center Positive

DC Output Cord Length: 1500 mm

Output Current-Channel 1: 1.32 A

Output Voltage-Channel 1: 19 VDC

AC Plug included/required: Required

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: 0 C
