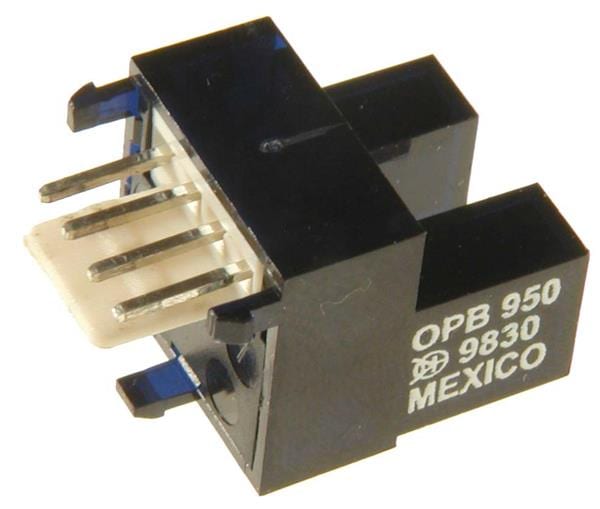

TT Electronics / Optek Technology OPB950Z Optical Switches, Transmissive, Photo IC Output Dual Channel Photologic

Width: 14.1 mm

Height: 15.62 mm

Length: 14.48 mm

Fall Time: 15 ns

Rise Time: 20 ns

Slot Width: 5.08 mm

Wavelength: 890 nm

Output Type: Open Collector, Inverter

Unit Weight: 2.854 g

Aperture Width: 1.27 mm

Mounting Style: Snap-In

Sensing Method: Transmissive, Slotted

Number of Channels: 2 Channel

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.8 V

Vr - Reverse Voltage: 2 V

Pd - Power Dissipation: 200 mW

Low Level Output Voltage: 210 mV

Operating Supply Voltage: 4.75 V to 5.25 V

High Level Output Current: 1 uA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
