TSURUGA 3565 Ohm Tester (300KΩ)

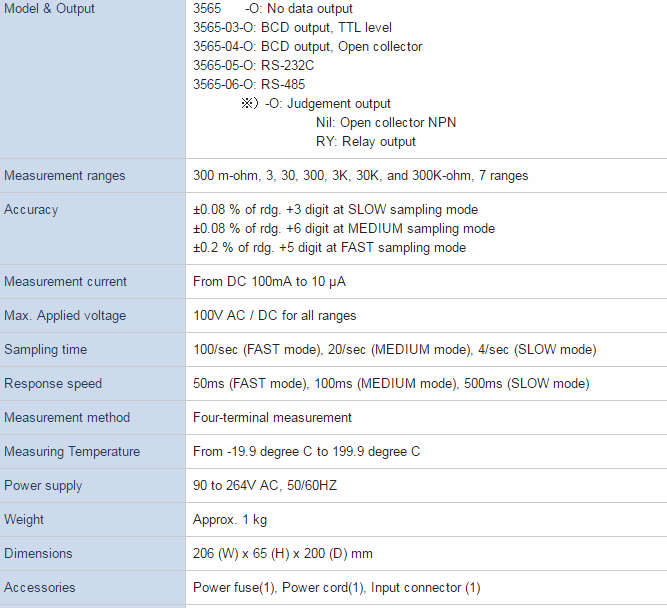

Model & Output 3565 -O: No data output
3565-03-O: BCD output, TTL level
3565-04-O: BCD output, Open collector
3565-05-O: RS-232C
3565-06-O: RS-485
※） -O: Judgement output
Nil: Open collector NPN
RY: Relay output
Measurement ranges 300 m-ohm, 3, 30, 300, 3K, 30K, and 300K-ohm, 7 ranges
Accuracy ±0.08 % of rdg. +3 digit at SLOW sampling mode
±0.08 % of rdg. +6 digit at MEDIUM sampling mode
±0.2 % of rdg. +5 digit at FAST sampling mode
Measurement current From DC 100mA to 10 µA
Max. Applied voltage 100V AC / DC for all ranges
Sampling time 100/sec (FAST mode), 20/sec (MEDIUM mode), 4/sec (SLOW mode)
Response speed 50ms (FAST mode), 100ms (MEDIUM mode), 500ms (SLOW mode)
Measurement method Four-terminal measurement
Measuring Temperature From -19.9 degree C to 199.9 degree C
Power supply 90 to 264V AC, 50/60HZ
Weight Approx. 1 kg
Dimensions 206 (W) x 65 (H) x 200 (D) mm
Accessories Power fuse(1), Power cord(1), Input connector (1)
