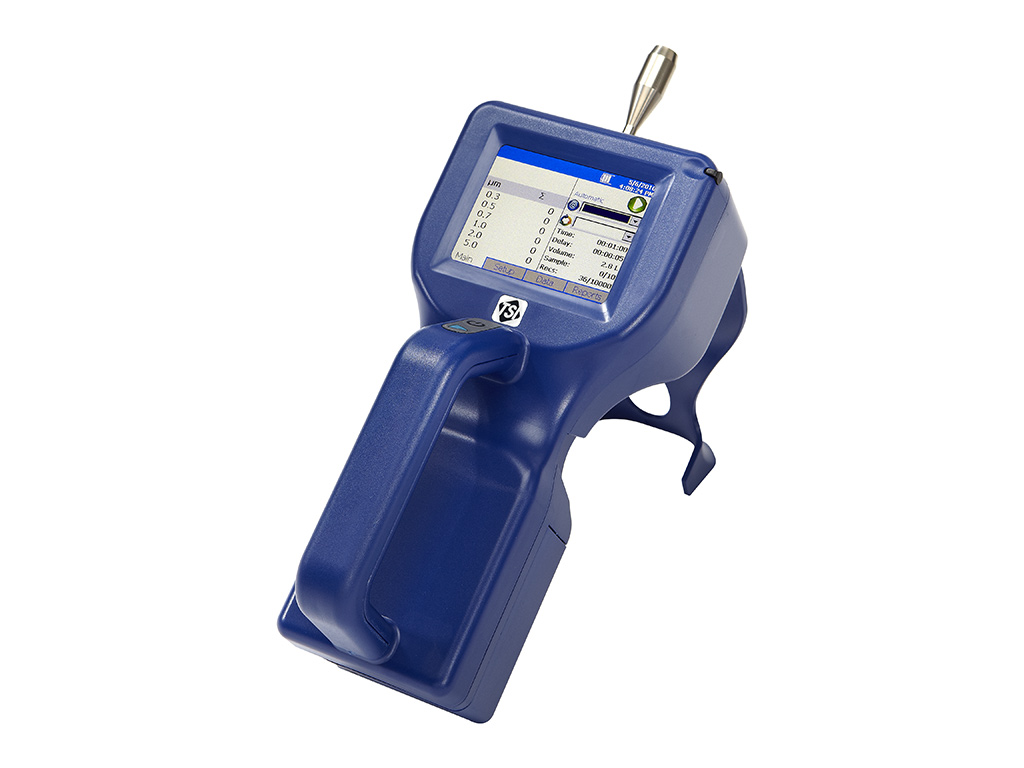

TSI 9306-04 Aerotrak Handheld Particle Counter

Size Range 0.3 to 25 µm
Particle Channel
Sizes
9306-04: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
9306-V2: 0.3 to 10 µm, user-selectable; factorycalibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Size Resolution <15% @ 0.5 µm (per ISO 21501-4 requirements)
Counting Effiency 50% at 0.3 µm; 100% for particles >0.45 µm
(per ISO 21501-4 and JIS)
Concentration Limit 5,950,000 particles/ft3 (210,000,000/m³)
@ 10% coincidence loss
Light Source Long life laser diode
Zero Count <1 count per 5 minutes (per ISO 21501-4
and JIS B9921)
Flow Rate 0.1 CFM (2.83 L/min) with ±5% accuracy
(meets ISO 21501-4 and JIS requirements)
Flow Rate Control Electronic, automatic closed loop (patented* flw
control technology)
Calibration NIST Traceable with TSI calibration system
Calibration
Frequency Recommended minimum once per year
Sampling Modes Manual, automatic, beep; cumulative/diffrential;count or concentration
Sampling Time 1 second to 99 hours
Sampling Frequency 1 to 9999 cycles or continuous
Exhaust Internally HEPA fitered
Communication Mode Modbus® TCP over Ethernet or USB
Alarm Status Audible alarm on counts
Status Indicators Low battery, flw, laser
Environmental
Sensors Optional Temp/RH probe
Display QVGA 3.5-inch (8.9-cm) touch screen
Reports Provides Pass/Fail on ISO 14644-1, EU GMP, and
FS209E reports
Unit ID Confiurable IP address

Dimension
(H x W x D)
9.4 in. x 4.6 in. x 4.9 in. (23.9 cm x 11.7 cm x 12.4 cm)
(without isokinetic inlet, includes handle)
Weight 2.2 lb (1.0 kg) with battery
Power 110 to 240 VAC, 50 to 60 Hz universal
in-line power supply

Operating manual on CD, power supply, battery,
isokinetic inlet, purge fiter, stylus, USB cable and
TrakPro™ Lite Secure
