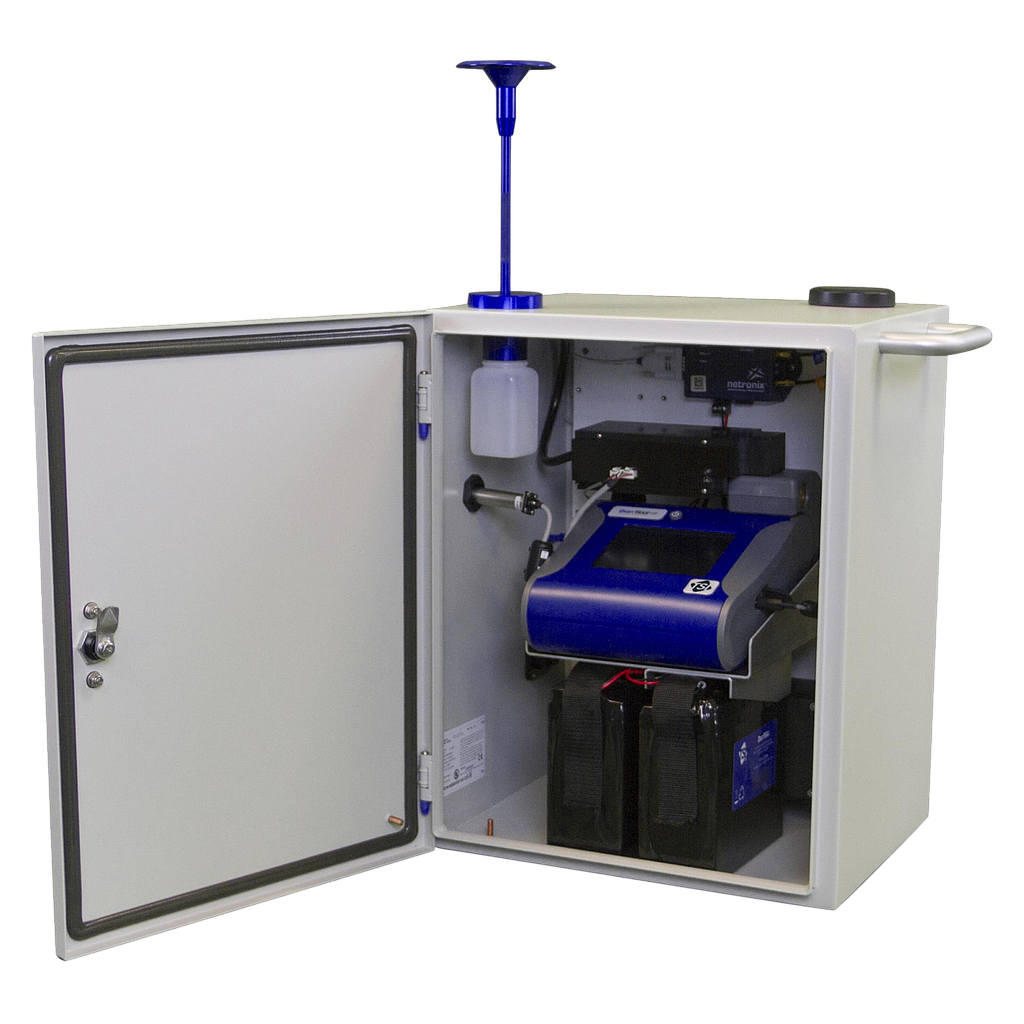

TSI 8537 DustTrak Aerosol Monitor Environmental Enclosure (50.8 x 40.6 x 30.5 cm)

Sampling Conditions:

Wind Speed: 0 to 22 mph (0 to 36 kph)

Operating Temperature: 32 to 120°F (0 to 50°C)

Storage Temperature: -4 to 140°F (-20 to 60°C)

Physical Specifications:

External Dimensions (HxWxD): 20 x 16 x 12 in. (50.8 x 40.6 x 30.5 cm)

Weight (enclosure only): 36 lb (16.3 kg)

Weight (with battery system, DustTrak EP, Heated Inlet, Modem): 76 lb (34.5 kg)

Internal Battery System:

Power Requirements: 12 VDC, 22 Ah

Battery Run-time (DustTrak II/DRX EP & Heated Inlet): approx. 15 hours

Dual Battery Wiring Harness: Run-time is typically twice the time quoted for a single battery pack

Heated Inlet Sample Conditioner:

Power Consumption: 12 VDC, 13 watt

Operating Conditions: Indoor/outdoor use; 32 to 122°F (0 to 50°C); 6,561 ft. (2,000 m) altitude; 5-95% Rh

Dimensions: 7.6 x 3.5 x 2.3 in. (19.3 x 8.9 x 5.8 cm)

Weight: approx. 1 lb (454 g)

Warm-up Time: 17 minutes
