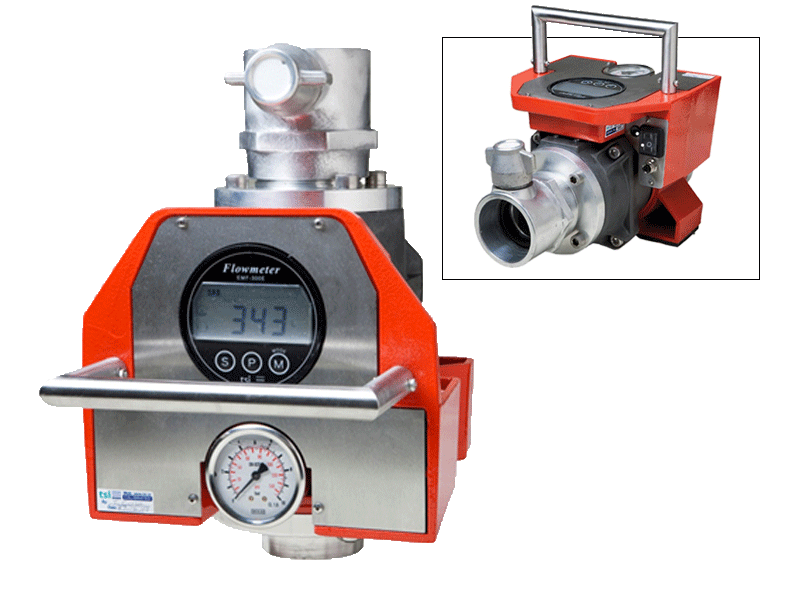

TSI Flowmeter 34-2001 Portable flow & pressure test instrument

Manufacturer: TSI Flowmeter

Model: Flowmaster 250

Part No.: 34-2001

Origin: Ireland

Warranty: 12 months

GENERAL

Electric power supply: Installed rechargeable battery, 12 V DC,2.2 Ah, separate charger included with delivery

Working temperature: -10 to +50°C

Connections: B.S. Instantaneous couplings

Dimensions: 210 mmx240 mmx390 mm

Weight: 12.5 kg

MANOMETER

Type: Bourdon tube

Operating Range: 0 to 25 bar, ±1%, 60mm dial, dual bar/psi gauge.

See Flowmaster 250DL if the 0-25 bar digital pressure transducer with bright LED readout of pressure is preferred. (Model No. 34-2005)

Adapters: 2.5” BS Inst. M/F or 2.5” BSP male thread as standard.

Flanged to 4” BSP male or to ¾” male tapered adaptors also available.

Housing: LM25 aluminium.

Colour: Red RAL 3020/natural aluminium.

FLOWMETER

Type: Electromagnetic

Operating Range: 30 to 3,000 lpm

Can be extended to 5,000 lpm.

Accuracy: >750lpm: ±15lpm. < 750lpm: ± 2%
