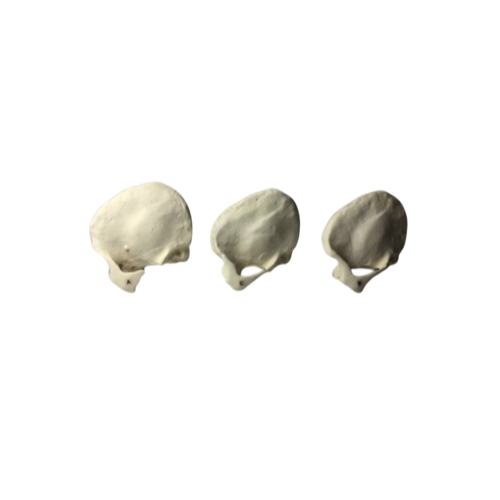

True Phantom Solutions TW-C01 Temporal Bone Phantoms For X-Ray CT, US, MRI

Size: 2.2 mm, 4.0 mm, 7.0 mm

Weight: 0.7 Lbs (approx.)

Temporal Bone A

Averaged Thickness / Sound velocity / Attenuation at 2.25 MHz

2.2 mm / 2820 ± 30 m/s / 45 ± 2 dB/cm

Temporal Bone B

Averaged Thickness / Sound velocity / Attenuation at 2.25 MHz

4.0 mm / 2820 ± 30 m/s / 45 ± 2 dB/cm

Temporal Bone C

Averaged Thickness / Sound velocity / Attenuation at 2.25 MHz

7.0 mm / 2820 ± 30 m/s / 45 ± 2 dB/cm

Cortical bone material used to fabricate all temporal bone phantom

Sound velocity / Attenuation at 2.25 MHz

3000 ± 10 m/s / 7.8 ± 0.4 dB/cm
