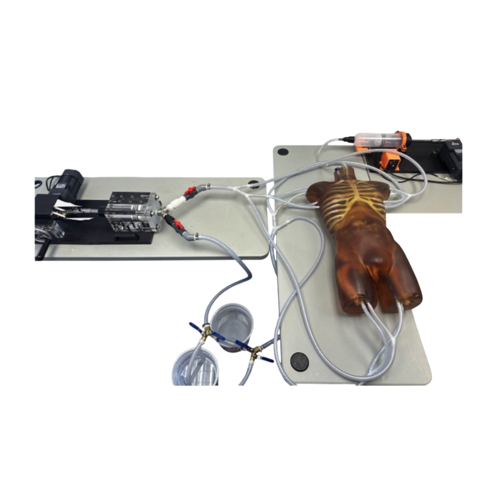

True Phantom Solutions TO-A05 Adult Torso (Dynamic) For X-Ray CT, MRI

Phantom

Size: 34 × 18 × 10 inches

Weight: 88 lbs (approx.)

Heart Pump

Size: 36 × 12 × 8 inches

Weight: 88 lbs (approx.)

Lung Pump

Size: 36 × 12 × 8 inches

Weight: 48 lbs (approx.)

Organs with Speckles (liver, kidneys, etc.)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1435 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / VARIABLE / 1.0 ± 0.2 dB/cm

Organs without Speckles (stomach, intestines, etc.)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / NO / 1.0 ± 0.2 dB/cm

Body Tissue

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1410 ± 10 m/s / 1.00 g/cm³ / 35 Shore 00 / 65 ms / NO/LOW / 1.2 ± 0.2 dB/cm

Cortical Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

3000 ± 30 m/s / 2.31 g/cm³ / N/A / N/A / N/A / 6.4 ± 0.3 dB/cm

Trabecular Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

2800 ± 50 m/s / 2.03 g/cm³ / N/A / N/A / N/A / 21 ± 2 dB/cm
