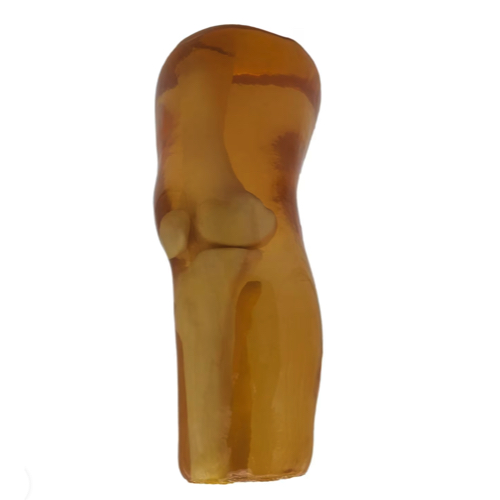

True Phantom Solutions KE-A05 Adult Knee (Bones Only) For X-Ray CT, US, MRI

Size: 6 x 7 x 15 Inches

Weight: 18 Lbs (approx.)

Cortical Bone

Sound velocity / Density / Hardness / T2 / Hounsfield Value / Attenuation at 2.25 MHz

3000 ± 30 m/s / 2.31 g/cm³ / N/A / N/A / 1300 / 6.4 ± 0.3 dB/cm

Trabecular Bone

Sound velocity / Density / Hardness / T2 / Hounsfield Value / Attenuation at 2.25 MHz

2800 ± 50 m/s / 2.03 g/cm³ / N/A / N/A / 1300 / 21 ± 2 dB/cm

Body Tissue

Sound velocity / Density / Hardness / T2 / Hounsfield Value / Attenuation at 2.25 MHz

1410 ± 10 m/s / 1.02 g/cm³ / 60 Shore 00 / 50 ms / 25 / 1.7 ± 0.2 dB/cm

Thermal Properties of Bone-Mimicking Material

Thermal Conductivity / Volumetric Specific Heat Capacity / Thermal Diffusivity / Thermal Resistivity / Specific Heat / Speed of Sound

0.776 W/m·K / 1.040 MJ/m³·K / 0.746 mm²/s / 1.289 m·K/W / 0.978 J/g·°C / 3070 m/s
