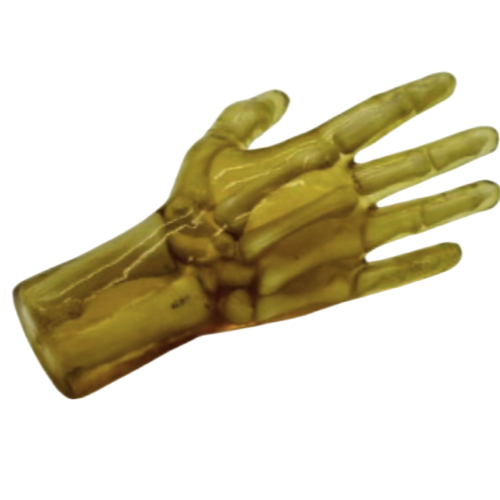

True Phantom Solutions HN-P01 Pediatric Hand For X-Ray CT, US, MRI

Size: 6 x 3 x 1 Inches

Weight: 1 Lbs (approx.)

Body Tissue

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

1410 ± 10 m/s / 1.00 g/cm³ / 1.5 ± 0.2 dB/cm / 40 Shore 00 / 55 ms / NO/LOW

Cortical Bone

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

3000 ± 30 m/s / 2.31 g/cm³ / 6.4 ± 0.3 dB/cm / N/A / N/A / N/A

Trabecular Bone

Sound velocity / Density / Attenuation at 2.25 MHz / Hardness / T2 / Speckles

2800 ± 50 m/s / 2.03 g/cm³ / 21 ± 2 dB/cm / N/A / N/A / N/A
