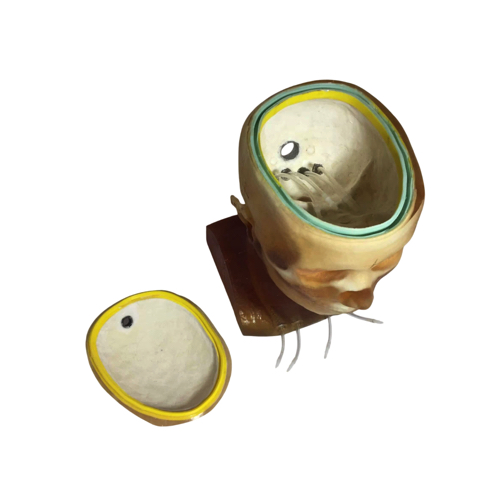

True Phantom Solutions HD-C02 Adult Head (Openable) For X-Ray CT, US, MRI

Size: 12 x 9 x 7 Inches,

Weight: 17 Lbs (approx.)

Cortical Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

3000 ± 30 m/s / 2.31 g/cm³ / N/A / N/A / N/A / 6.4 ± 0.3 dB/cm

Trabecular Bone

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

2800 ± 50 m/s / 2.03 g/cm³ / N/A / N/A / N/A / 21 ± 2 dB/cm

Skin/Body Tissue

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 1.02 g/cm³ / 60 Shore 00 / 50 ms / NO / 1.7 ± 0.2 dB/cm
