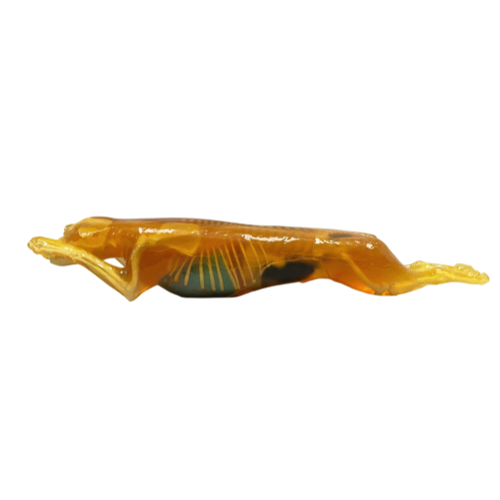

True Phantom Solutions CN-A02 Canine Phantom For Ultrasound

Size: 110cm × 20cm × 20cm (44 × 8 × 8 inches)

Weight: 16kg (35 lbs) (approx.)

Organs with Speckles (liver, kidneys, etc.)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1435 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / VARIABLE / 1.0 ± 0.2 dB/cm

Organs without Speckles (stomach, intestines, etc.)

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1400 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / NO / 1.0 ± 0.2 dB/cm

Body Tissue

Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz

1410 ± 10 m/s / 1.00 g/cm³ / 30 Shore 00 / 65 ms / NO/LOW / 1.2 ± 0.2 dB/cm
