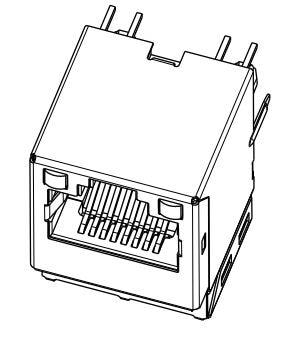

TRP Connector 1840469-2 Magnetic Jack 1X1 Vertical 7D52ET 10/100 W/ LED

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 10/100 Base-T PoE 15W

Unit Weight: 14 g

REACH - SVHC: Details

Configuration: 1x1

Tab Direction: User Selectable

Current Rating: 350 mA

Mounting Angle: Vertical

Mounting Style: Through Hole

Contact Plating: Gold

LED L / R Color: Green / Yellow

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Flammability Rating: UL 94 V-0

Performance Category: Cat 5

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
