Camera specifications
Chip structure: FPGA + ARM
Kemel structure: Dual-core Cortex-A9
Operating system: LINUX 3.10
Optical dimensions: 1/1.2″
Main frequency speed: 1Ghz
Interface: 2 USB (Mouse / U Disk)
Resolution: 1920*1080
Image element: 5 * 5μm
Frame rate: 60 fps
White balance: Automatic
Eliminate strong light: Continuously adjustable
Crosshairs integration: 64 horizontal and vertical lines
Raise the edge: Adjust
Video output: HDMI digital output
Operating temperature: -10 °C -70 °C
Voltage output: DC 12V
Adjust color temperature: RGB can be adjusted independently
Lens connector: C Interface
Weight: 450g
External dimensions: 61*61*76mm
Parameters of the entire microscope:
Output interface: HDMI
Exaggerated: 27-230X
Center distance: 150mm
Ocular: 1X
Height: 318mm
Objective lens: 0.6-5X Multi-speed adjustment
Size: 330 * 300 * 320mm
Optical magnification: 0.6-5X (customizable)
Lamp beads: 56 LEDs
Working distance: 86mm
Power input voltage: AC100-AC240V
Focus range: 40mm
Column size: 32 * 318mm
Inner and outer diameter of column: 95/63mm
Display: 21 inches
Wattage: 4.5W

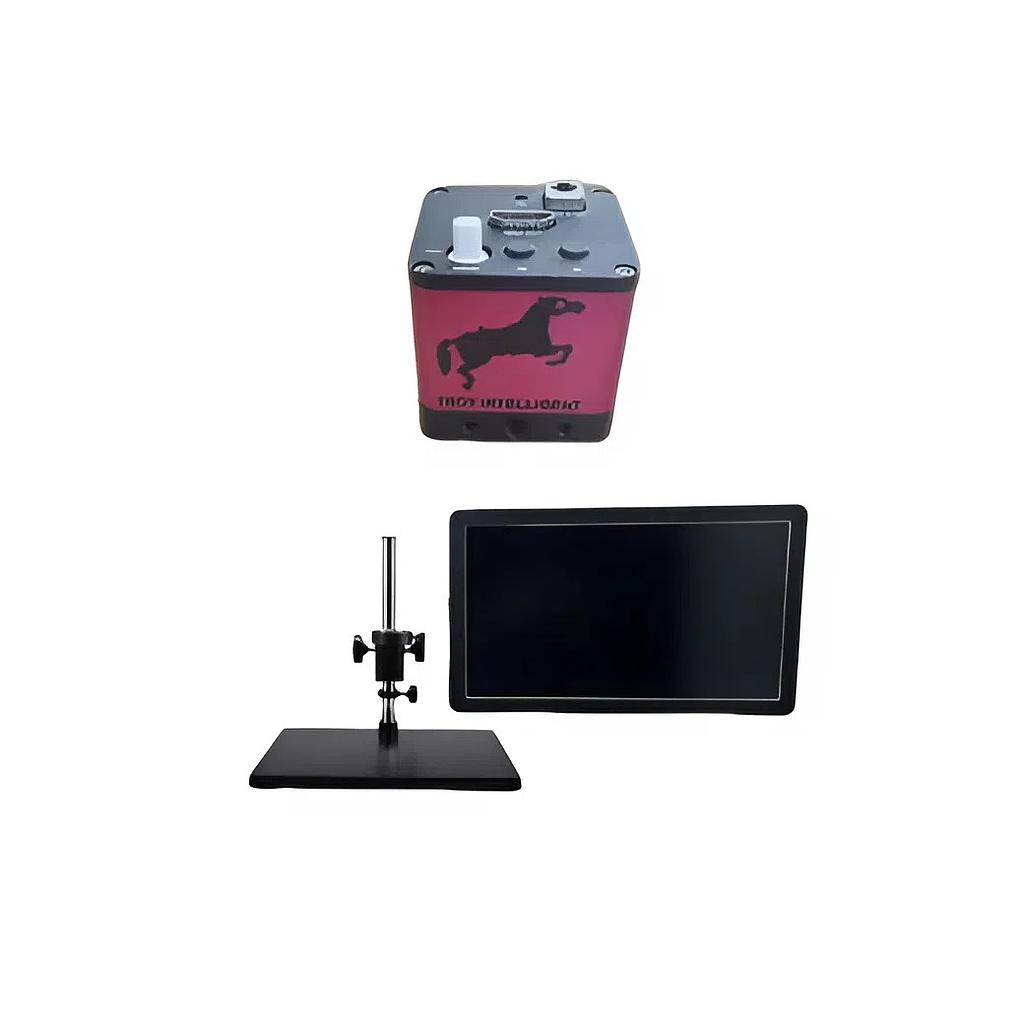

Accessory:
Light Souce
Lens 0.5-4.5
HDMI cable
12V source
Screen 13.3
Base and Holder
