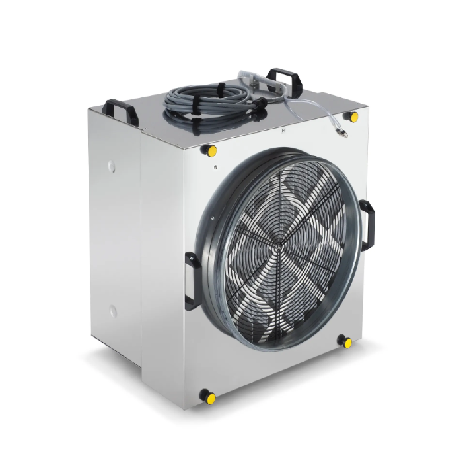

Trotec TTR filter box 610 TTR filter box 610 (4,000 m³/h)

Max. air flow rate [m³/h]: 4,000

Air transport hose connector [ø mm]

Suction side: 500

Blow-out side: 500

Dimensions (L x W x H) [mm]: 605 x 655 x 730

Weight (without filters) [kg]: 33

The filter box with its hygiene-friendly stainless steel design accommodates two filter compartments: an H13 HEPA filter and a pre-filter. Additionally, it is equipped with a HEPA filter level indication for external voltage supply. The filter box was specially developed for use with industrial desiccant dehumidifiers of the TTR series. However, it can also be combined with other dry air generators as well as with all air treatment units the air of which is released into rooms with specific purity requirements.

Each TTR filter box is designed for a maximum air flow rate of 4,000 m³/h and can easily be  complemented with additional TTR filter boxes installed in parallel to allow for operation with more powerful air treatment units.
