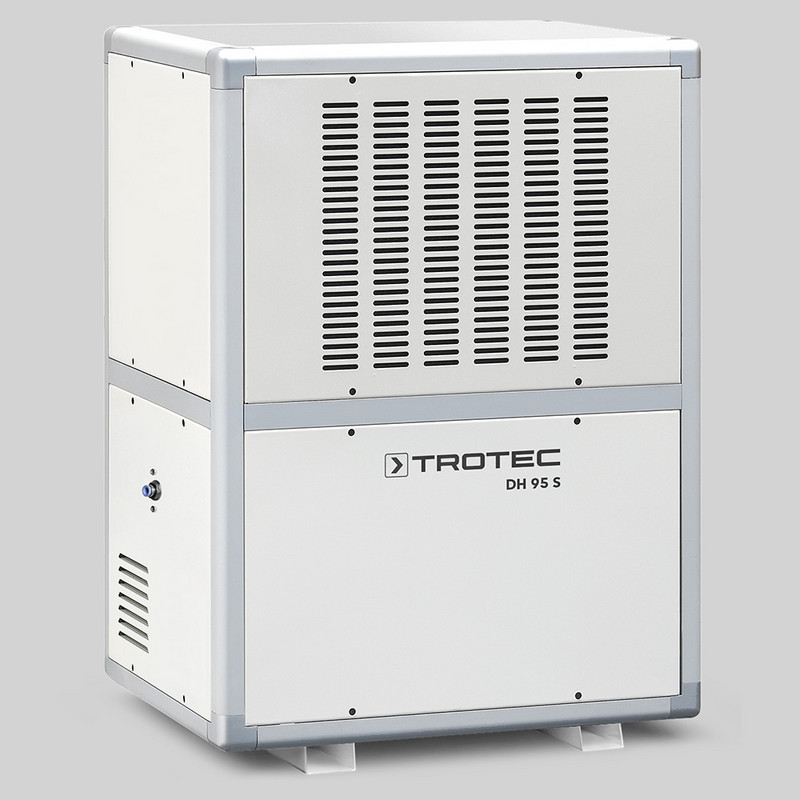

Trotec DH 95 S Industrial Condenser Dryer (130 l/24h; 1100 m³/h)

Dehumidification performance at 30 °C and 80 % RH: 130 l / 24 h

Air flow rate: 1100 m3/h

Operating range(temperature): 5 °C to 32 °C

Operating range(relative humidity): 30 % to 90 % RH

Pressure suction side: 1.65 MPa

Pressure outlet side: 3.1 MPa

Mains connection: 220-240 V / 50 Hz

Power consumption, max:. 2.77 kW

Nominal current: 13.2 A

Refrigerant: R-410A

Amount of refrigerant: 1450 g

GWP factor: 2088

CO2 equivalent: 3.03 t

Sound pressure level(at a distance of 1 m):62 dB(A)

Type of protection: IPX0

Dimensions (length x width x height): 465 x 600 x 910 mm

Minimum distance to walls and other objects

A: top: 50 cm

B: rear: 50 cm

C: side: 50 cm

D: front: 50 cm

Weight: 65 kg
