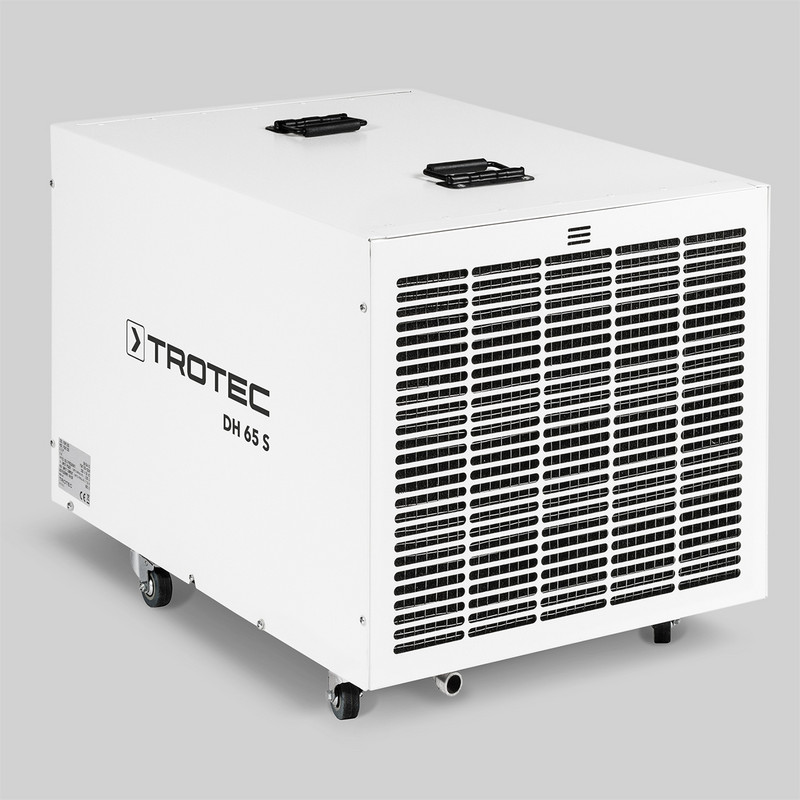

Trotec DH 65 S Industrial Condenser Dryer (80 l/24h; 1100 m³/h)

Dehumidification performance / 24 h at 30 °C / 80 % RH: 80 l

Amount of air : 1100 m3/h

Max. permissible pressure : 2.5 MPa

Pressure suction side : 0.6 MPa

Pressure outlet side : 2.5 MPa

Operating range (temperature) : 1 to 35 °C

Operating range (relative humidity):

below 30 °C: 35 to 98 % RH

30 °C to 32 °C: 35 to 90 % RH

32 °C to 35 °C: 35 to 70 % RH

Mains connection : 220 – 240V ~ 50 Hz

Power input : 1.48 kW

Nominal current : 7.6 A

Peak starting current : 16 A

Fusing : T 10 A 250 V

Type of protection : IPX0

Refrigerant : R1234yf

Amount of refrigerant : 750 g

GWP factor: 4

CO2 equivalent : 0.00300 t

Sound level at a distance of 3 m : 56 dB(A)

Minimum distance to walls or other objects:

A: top: 50 cm

B: rear: 50 cm

C: side: 50 cm

D: front: 50 cm

Length x width x height : 580 x 730 x 580 mm

Weight : 55 kg
