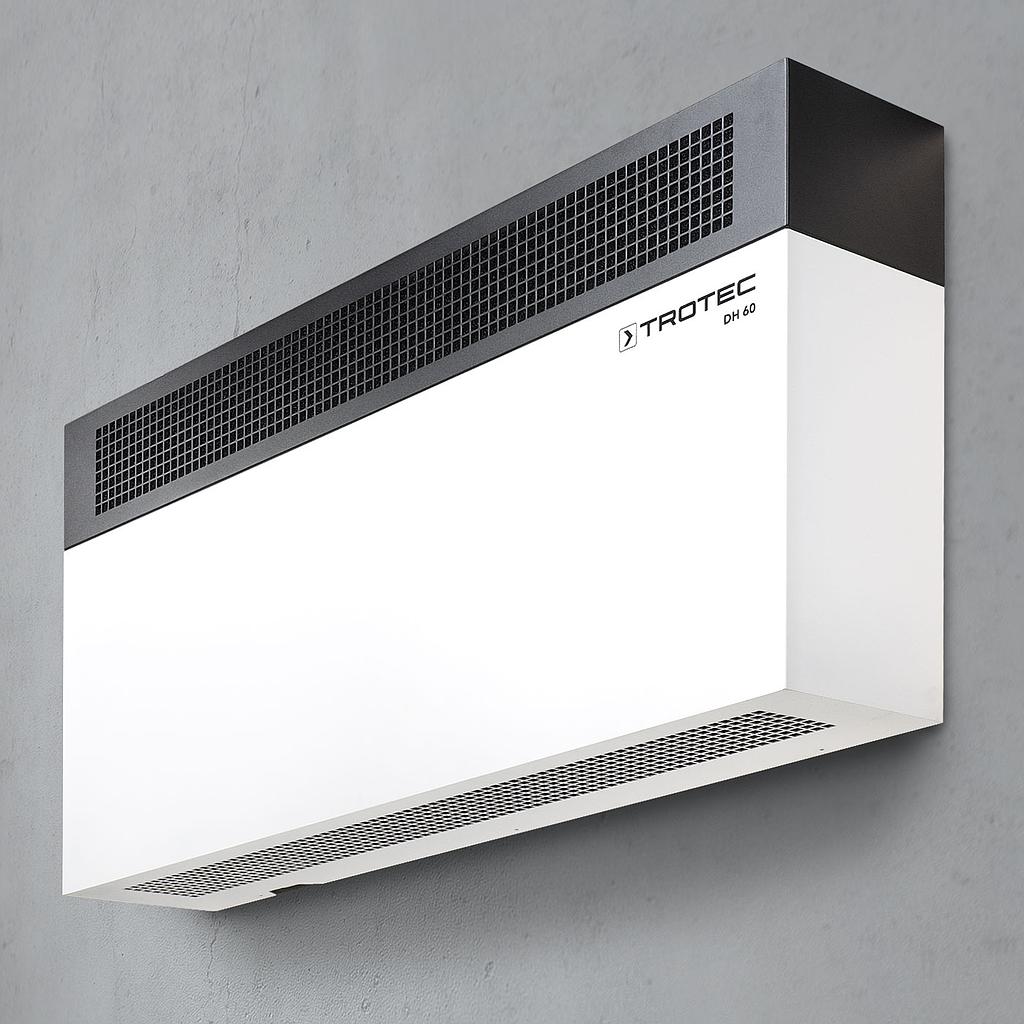

Trotec DH 60 Industrial Condenser Dryer (90l/24h; 1,165 m³/h)

Dehumidification performance: At 20 °C / 60 % RH [l/24h]: 38; At 30 °C / 80 % RH [l/24h]:90

Power supply: 220-240 V -50 Hz

Power cable: CEE 7/7/1=3.5 m

Power input: 1.523 kW

Nominal/peak current: 7.5 A/30 A

Heat emission: 3.5kW

Coefficient of performance: 2.9

Refrigerant: R-407C

GWP factor: 1.773.85

CO2 equivalent: 1.419t

Amount of refrigerant: 800 g

Air volume (freely blowing): 1.165 m3/h

Sound pressure level @ 3 m: 54 dB(A)

Operating range temperature: 5 to 40 °C

Setting range relative humidity: 30% to 60% RH

Max. permissible relative humidity: 90 % RH

Weight: 70 kg

Dimensions (length x width x height) incl. wall holder: 255 x 1253 x 651 mm

Minimum distance to walls or other objects:

A: top: 12.5 cm

B: bottom: 12.5 cm

C: side: 12.5 cm

D: front: 12.5 cm
