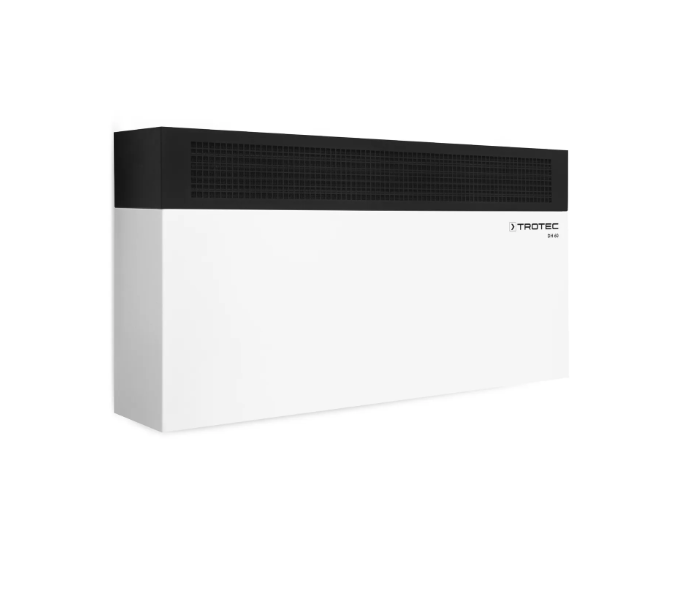

Trotec DH 60 H Industrial condenser dryer (2.8 kW; 7.5 +12.2 A)

Dehumidification performance: see performance charts on page 24

Heating capacity [kW]: 2.8

Voltage [V / Hz]: 220-240 / 50

Nominal current consumption [A]: 7.5 + 12.2

Starting current [A]: 30

Fuse [A]: 2x16

Electrical connection (plug): clamp

Power input [kW]: 1.73 + 2.8

Heat emission [kW]: 3.5

Coefficient of performance (COP) ¹: 2.9

Refrigerant:

Type: R-407C

Amount [g]: 800

GWP factor: 1,774

CO2-equivalent [t]: 1.42

Air volume freely blowing [m³/h]: 1,165

Sound level (distance 3 m) [dB(A)]: 54

Operating range temperature [°C]: 5 to 40

Operation range max. RH [%]: 90

Length x width x height [mm]: 225x1,253x651

Weight [kg]: 70

Condensate discharge connection [mm]: 10
