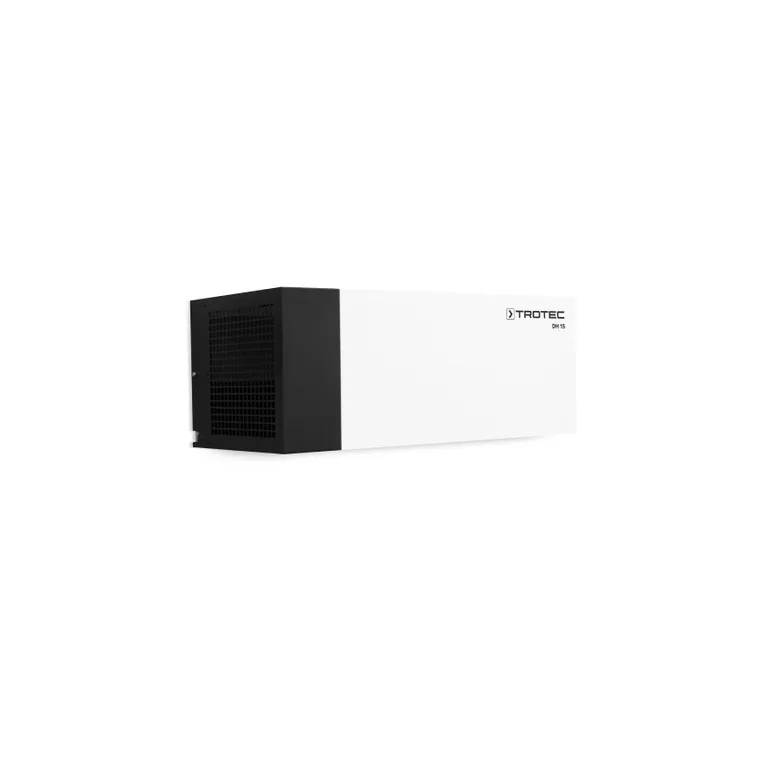

Trotec DH 15 Industrial Condenser Dryer (22l/24h; 225 m³/h)

Dehumidification performance: At 20 °C / 60 % RH [l/24h]: 11; At 30 °C / 80 % RH [l/24h]: 22

Power supply: 220-240 V~50 Hz

Power cable: CEE 7/7/1=3.5 m

Power input: 657 W

Nominal/peak current: 3.7 A/18 A

Heat emission: 0.9 kW

Coefficient of performance: 1.6

Refrigerant: R-407C

GWP factor: 1.773.85

CO2 equivalent: 0.851 t

Amount of refrigerant: 480 g

Air volume (freely blowing): 225 m3/h

Sound pressure level @ 3 m: 49 dB(A)

Operating range temperature: 5 to 40 °C

Setting range relative humidity: 30% to 60% RH

Max. permissible relative humidity: 90 % RH

Weight: 37 kg

Dimensions (length x width x height) incl. wall holder: 365 x 840 x 330 mm

Minimum distance to walls or other objects:

A: top: 12.5 cm

B: bottom: 12.5 cm

C: side: 12.5 cm

D: front: 12.5 cm
