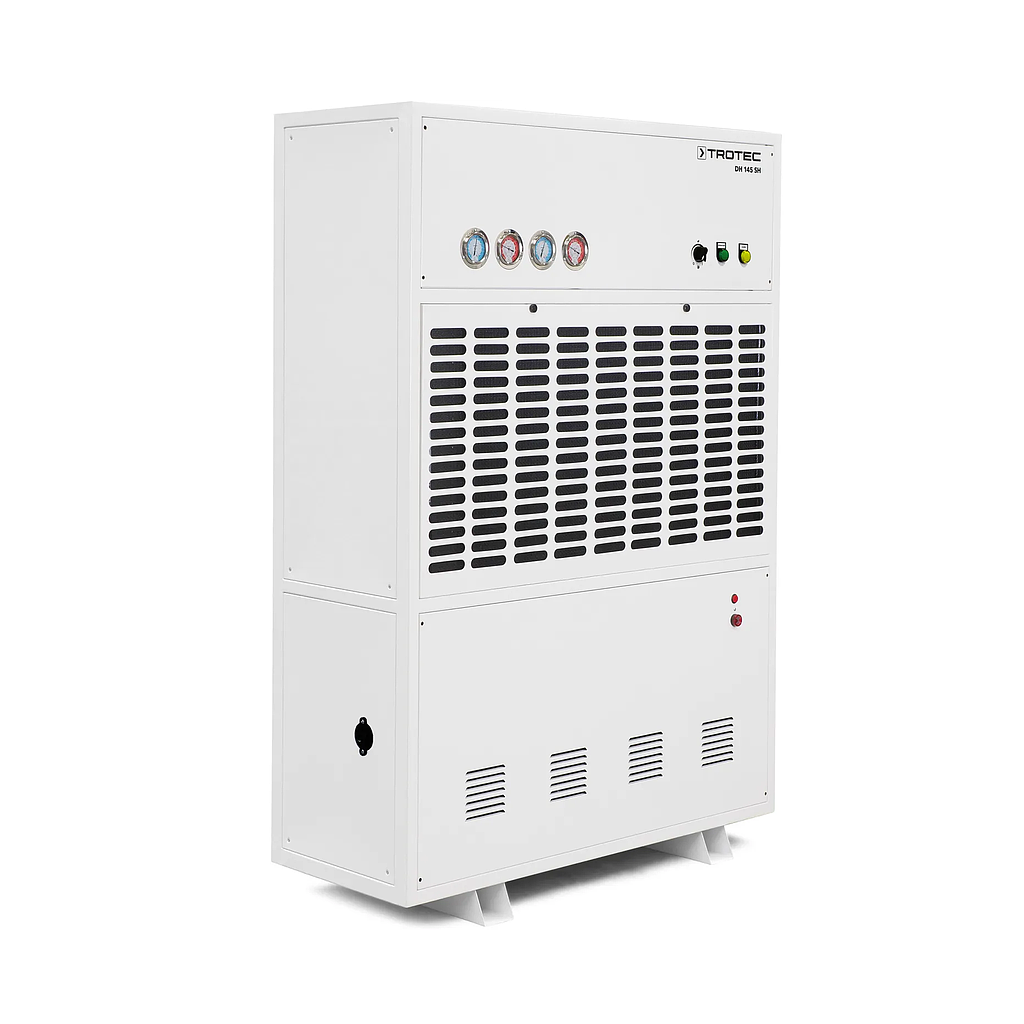

Trotec DH 145 SH Industrial Condenser Dryer (485 l/24h; 4300 m³/h)

Dehumidification performance @30 °C and 80 % RH : 485 l / 24 h

Air flow rate : 4300 m³/h

Operating range(temperature): 5 °C to 32 °C

Operating range(relative humidity): 30 % to 90 % RH

Pressure suction side : 1 MPa

Pressure outlet side: 2.5 MPa

Mains connection : 400 V / 50 Hz

Power consumption, max. : 9.8 kW

Nominal current : 16.6 A

Refrigerant : R407C

Amount of refrigerant : 3200 g

GWP factor : 1774

CO2 equivalent : 5.68 t

Sound pressure level(at a distance of 1 m): 68.5 dB (A)

Dimensions (length x width x height): 460 x 1195 x 1730 mm

Minimum distance to walls and other objects

A: top: 50cm

B: rear: 50cm

C: side: 50cm

D: front: 50cm

Weight : 235 kg

Datasheet
