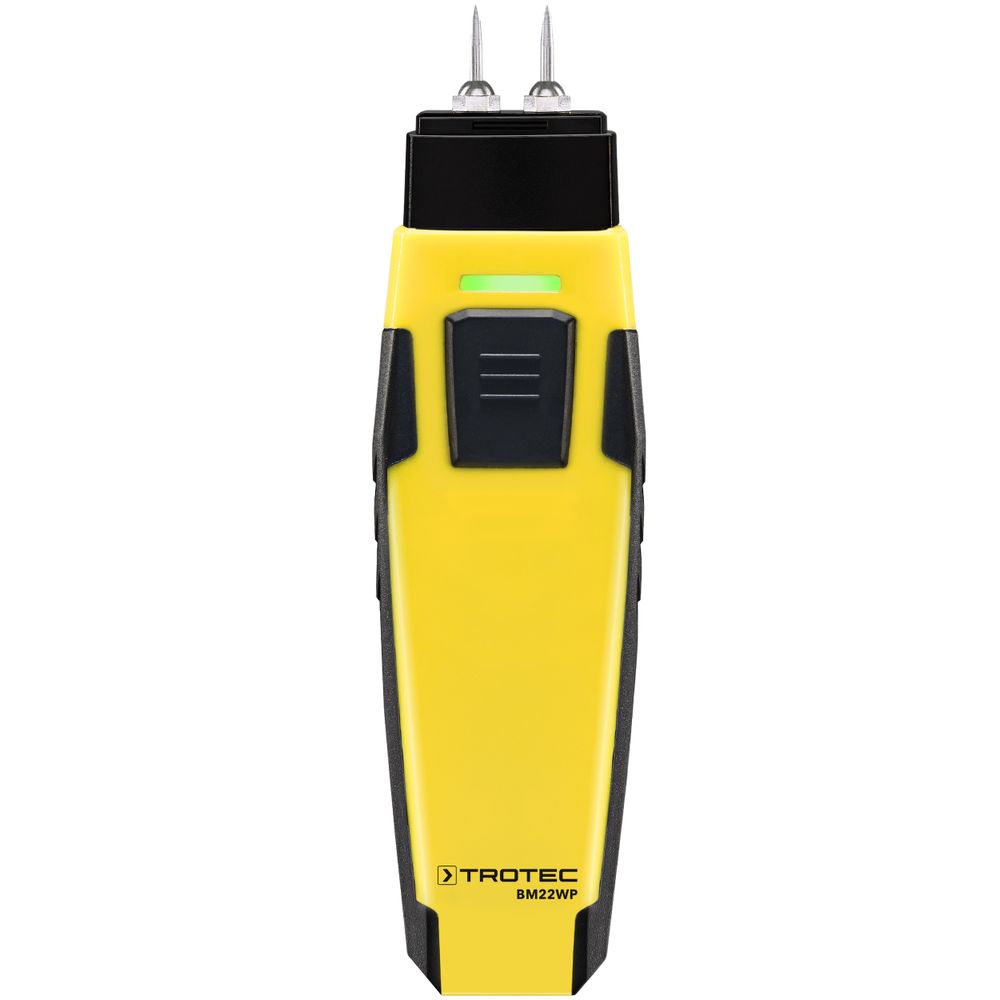

Trotec BM22WP Moisture Measuring Device (6 ~ 26%)

Measurement principle: resistance measuring method

Electrode length: approx. 8 mm

Electrodes: replaceable

Wood moisture

Measuring range: 6 to 26 %

Accuracy: ± 2 %

Resolution: 1 %

Building moisture

Measuring range:

Plaster: 0.2 to 2.4 %

Brick: 1.0 to 5.5 %

Cement mortar: 1.5 to 7.7 %

Cement screed: 4.7 to 9.0 %

Concrete: 3.9 to 7.0 %

Accuracy: ± 0.2 %

Resolution: 0.05 %

General technical data

Bluetooth standard: Bluetooth 4.0. Low Energy

Bluetooth frequency range: 2.4 GHz

Bluetooth max. transmission power: 10 dBm

Radio range: approx. 10 m (depending on measuring environment)

Storage temperature :-10 °C to 60 °C with < 90 % RH non-condensing

Operating temperature :0 °C to 50 °C with < 80 % RH

Power supply: 3 x 1.5 V batteries, type AAA

Device switch-off : after approx. 3 minutes without active; Bluetooth connection

Protection type: IP40

Weight: 103 g

Dimensions (length x width x height): 22 mm x 33 mm x 140 mm (incl. protective cap)

Scope of delivery

• 1 x Device BM22WP

• 3 x 1.5 V battery AAA

• 1 x Wrist strap

• 1 x Quick guide
