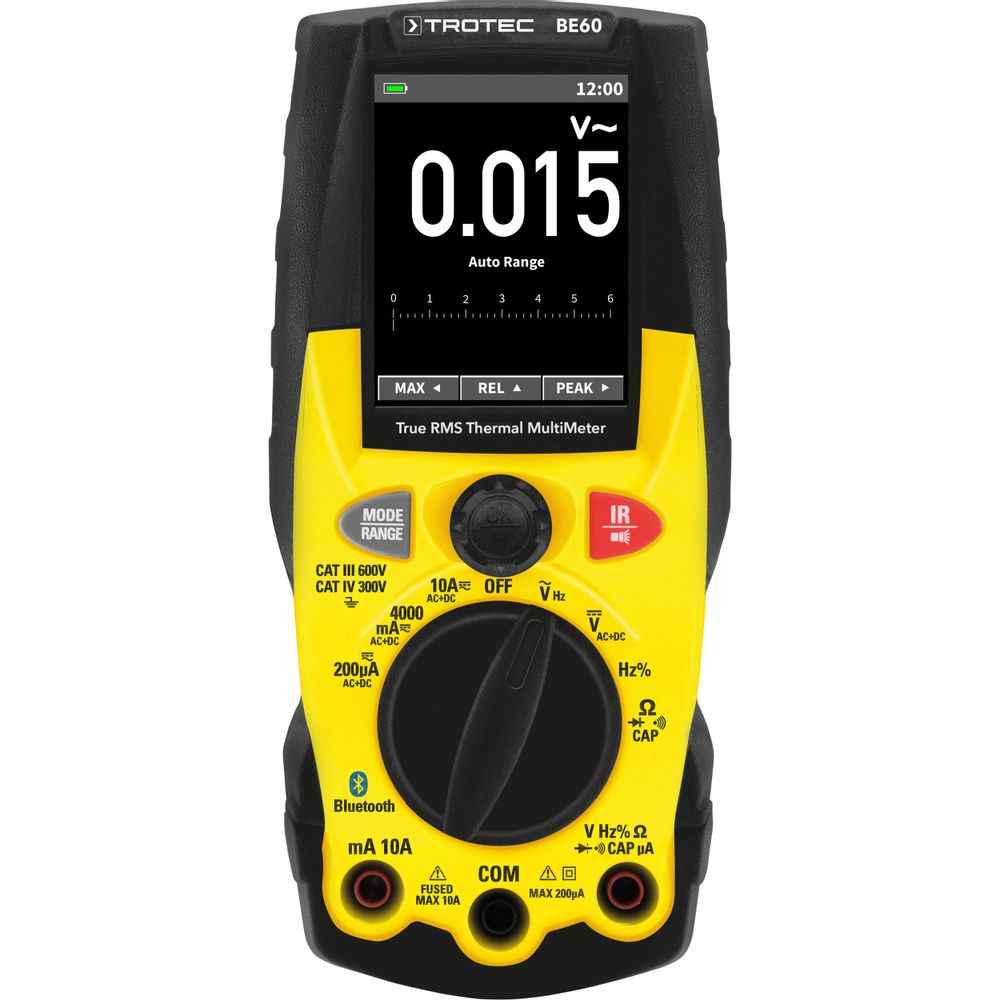

Trotec BE60 Digital True RMS Multimeter with Integrated Thermal Imaging Camera (600 V/10 A/ 40 MΩ; CAT IV 600 V/ FPA 80x80)

Name: Trotec BE60 Digital True RMS Multimeter with Integrated Thermal Imaging Camera (600 V/10 A/ 40 MΩ; CAT IV 600 V/ FPA 80x80)
Brand: Trotec

ManufacturerTrotec(View more products from this manufacturer)

ModelBE60

P/N3.510.205.260

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

General information

Continuity test: An acoustic signal is emitted if the resistance is less than 50 Ω

Diode test: Test current: <1.5 mA; max. test voltage: 3.3 VDC

LC display: 3 3/4 digits; 4000 count TFT

Menu languages: German; Chinese; English; Italian; Spanish; French; Dutch; Polish; Turkish; Portuguese

Exceedance of the measuring range: OL will be displayed

Polarity : Automatic (no indication for positive); minus (-) sign for negative

Measuring speed: 3 x per second; nominal

Bluetooth frequency range: 2.4 GHz

Bluetooth max. transmission power: 0 dBm

Battery status indication: The battery icon will be displayed when the battery voltage drops below the operating voltage threshold

Battery: 1 x 3.7 V lithium-ion battery; 1400 mAh

Battery charging socket: micro USB (5 VDC; 1A)

Fuse: 10 A / 600 V

Operating temperature: 5 °C to 40 °C (41 °F to 104 °F)

Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Max. relative humidity: < 80 %

Degree of pollution: 2

Insulation: double insulation

Operating height above sea level: max. 2000 m (6562 ft)

Type of protection: IP40

Weight: approx. 540 g

Dimensions: 175 x 85 x 55 mm

Automatic switch-off: after 15 to 60 minutes of non-use (can be deactivated)

Shock test: up to a drop height of 2.0 m (6.5 ft)

Safety : This measuring device is designed for indoor use and complies with measuring category CAT III up to 600 V and measuring category CAT IV up to 300 V.

Thermal imaging camera

Temperature range: -20 °C to +260 °C (-4 °F to +500 °F)

Minimum focusing distance: 0.5 m

Field of view (FOV): 15.6 x 15.6 °

Spatial resolution (IFOV): 2.26 mrad

Thermal image resolution: 120 x 120 pixels

Focusing mode: Fixed focus

Focal length: 7.5 mm

Frame rate: 50 Hz

Detector type: Focal Plane Array/uncooled microbolometer

Infrared spectrum: 8 µm to 14 µm

Accuracy: ±3 °C (± 5.4 °F) or ±3 % (at an ambient temperature of 10 °C to 35 °C; object temperature >0 °C)
