Diode test: max. testing current of 0.3 mA. opencircuit voltage of 1.5 V DC (typically)
Continuity test : An acoustic signal is emitted if the resistance amount to less than 150 Ω.
Input impedance: 10 MΩ (V DC and V AC)
Frequency range : 50 Hz to 400 Hz (AAC and VAC)
LC display: 2000 Count LCD
Measuring range exceeded: OL will be displayed.
Polarity: Automatic (no indication for positive); minus (-) sign for negative
Measuring speed: 2 x per second. nominal
Battery indication: BAT is indicated if the battery voltage drops below the operating voltage threshold
Battery: 2 x AAA battery. 1.5 V
Fuses Measuring range µA/mA: 200 mA/600 V (fast acting); Measuring range: 10 A: 10 A / 600 V (fast acting)
Operating temperature: 5°C to 40°C (41°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Type of protection: IPX0
Relative humidity: Operation: max. 80 % up to 31 °C (87 °F). linear decreasing to 50 % at 40 °C (104 °F); Storage: <80%
Operating height above sea level: Maximum 2000 m (7000 ft)
Weight: 170 g
Dimensions (length x width x height): 121 mm x 65 mm x 35 mm
Automatic switch-off: after 15 minutes of inactivity
Safety: This measuring device is designed for indoor use and complies with overvoltage category CAT III (600 V).
Measuring ranges
DC voltage (V DC): 200 mV~600 V
AC voltage (V AC. 50 / 60 Hz): 200 mV~600 V
Direct current (A DC): 200 µA~10 A
Alternating current (A AC): 200 µA~10 A
Resistance (Ω): 200 Ω~20 MΩ
Scope of delivery

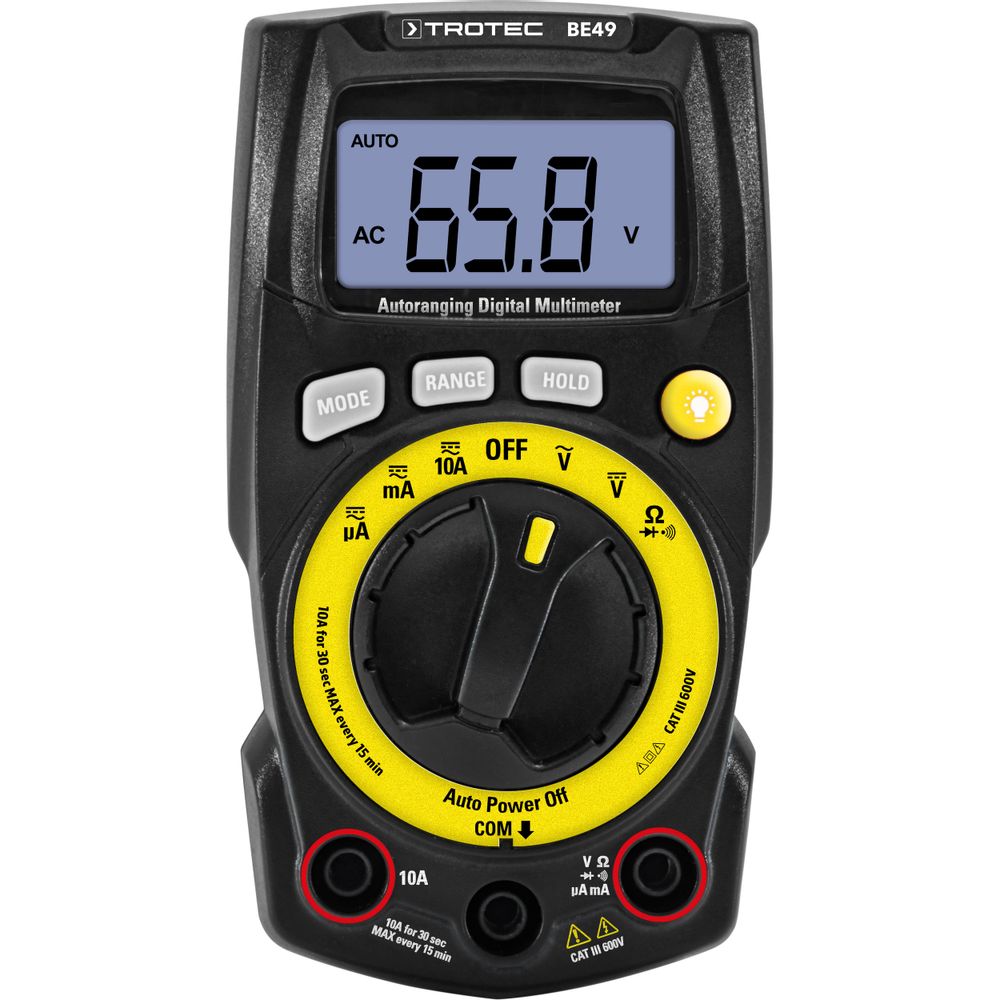

• 1 x Multimeter
• 1 x Safety measuring lines with test probes
• 2 x AAA battery
• 1 x Quick guide
