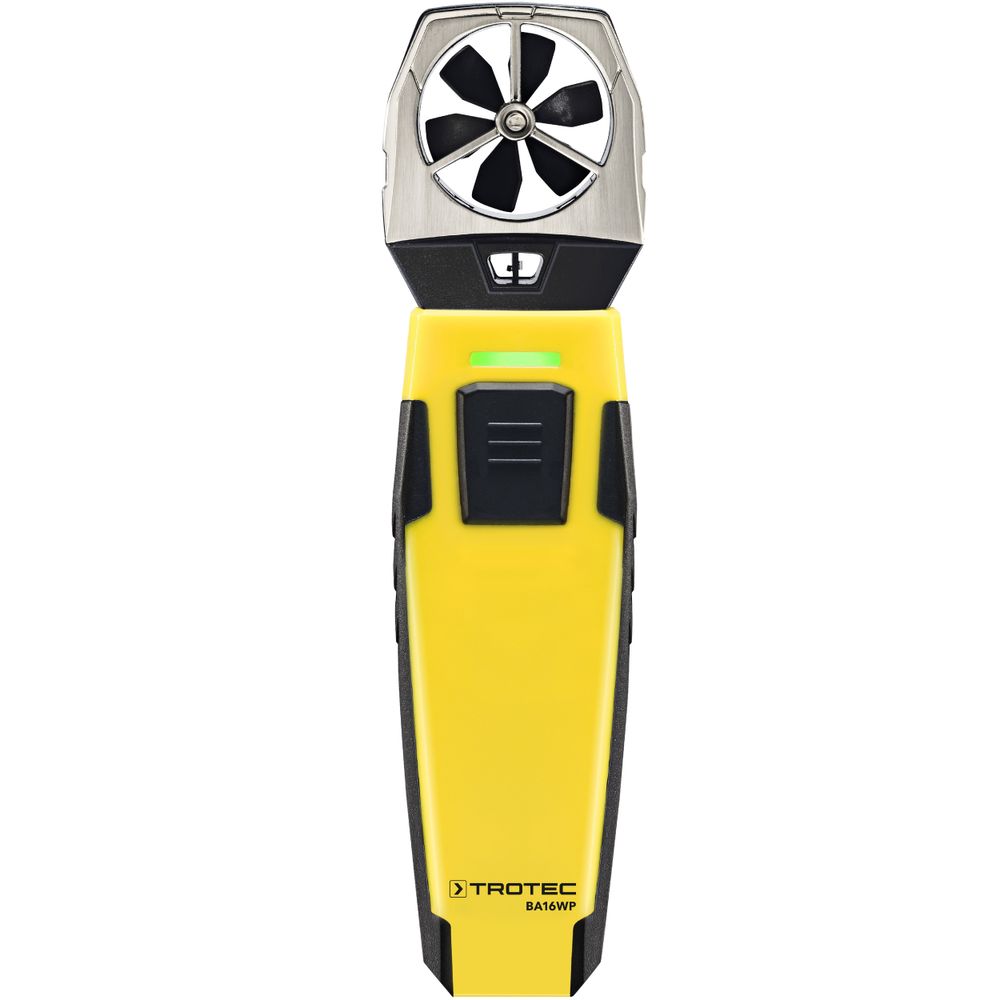

Trotec BA16WP Anemometer (0.6 – 30 m/s; ± 3.5 %)

Air flow rate

Measuring range:

0.6 m/s to 30 m/s

2.2 km/h to 108 km/h

118 ft/min to 5905 ft/min

1.3 mph to 67 mph

1.2 kn to 58 kn

Accuracy:

0.6 to 25 m/s: ± (3.5 % + 0.2 m/s)

2.2 to 90 km/h: ± (3.5 % + 0.7 km/h)

118 to 4921.3 ft/min: ± (3.5 % + 39 ft/min)

1.3 to 55.9 mph: ± (3.5 % + 0.4 mph)

1.2 to 48.6 kn: ± (3.5 % + 0.4 kn)

Resolution:

0.1 m/s

0.1 km/h

1 ft/min

0.1 mph

0.1 kn

Temperature

Measuring range: -20 °C to 60 °C / -4 °F to 140 °F

Accuracy: ± 0.8 °C (at < 0 °C); ± 0.5 °C (at > 0 °C)

Resolution: 0.1 °C / 0.1 °F

Humidity

Measuring range: 0 % RH to 99.9 % RH

Accuracy: ± 3.5 % RH (with 20 to 80 % RH); ± 5 % RH (with 0 to 20 % RH and 80 to 100 % RH)

Resolution: 0.1 % RH

General technical data:

Bluetooth standard: Bluetooth 4.0. Low Energy

Bluetooth frequency range: 2.4 GHz

Bluetooth max. transmission power: 10 dBm

Radio range: approx. 10 m (depending on measuring environment)

Storage temperature: -10 °C to 60 °C with < 90 % RH non-condensing

Operating temperature: -20 °C to 50 °C

Power supply: 3 x 1.5 V batteries. type AAA

Device switch-off: after approx. 3 minutes without active; Bluetooth connection

Protection type: IP40

Weight: 122 g

Dimensions (length x width x height): 22 mm x 43 mm x 158 mm

Scope of delivery

• 1 x Device BA16WP

• 3 x 1.5 V battery AAA

• 1 x Wrist strap

• 1 x Quick guide

Manual
