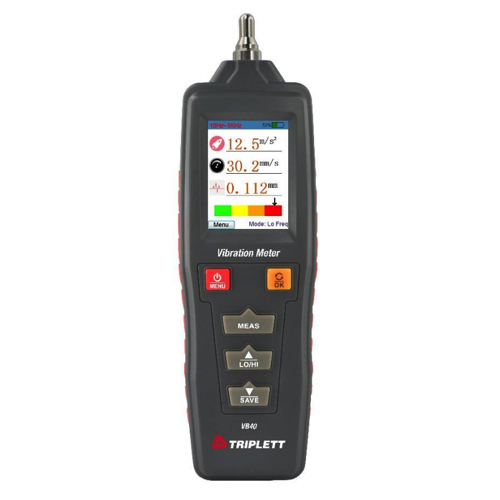

Triplett VB40 Vibration Meter (199.9m/s², 199.9mm/s, 1.999mm)

Sensor Type: Piezoelectric Ceramic Accelerometer (Shear Type)

Measurement Range:

Acceleration (RMS): 655.8ft/sec2, 199.9m/s2;

Velocity (RMS): 7.87in/s, 199.9mm/s

Displacement: 0.078in/s, 1.999mm

Basic Accuracy : ±(5% + 2 digits)

Frequency  Range (Acceleration) : 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)

Frequency  Range (Velocity/Displacement): 10Hz to 1KHz (LO)

Display: Color TFT Display (Auto- Rotate)

Power: (2) 1.5V AAA Batteries

Dimensions: 7 x 2 x 1.2" (177 x 51 x 30.5mm)

Weight: 5.3oz (150.3g)
