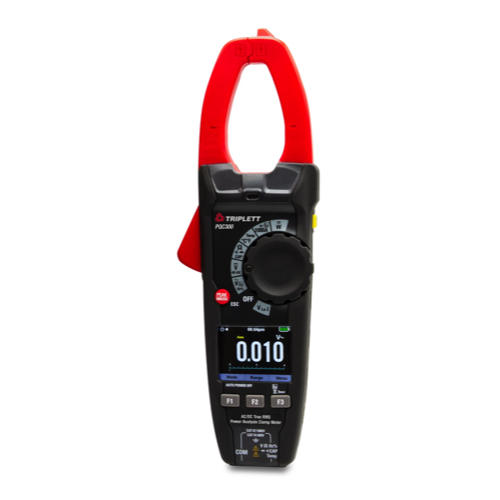

Triplett PQC300 Single Phase True RMS Power Quality Clamp Meter (1000A; 1000V)

True RMS: ·

Display: 6000 count RGB LCD

AC Current: 1000A

ACA Accuracy: ±2.8%

DC Current: 1000A

Active Power: 999.9kW (±3% + 5d)

Apparent Power: 999.9kVA (±3% + 5d)

Reactive Power: 999.9kVAR (±3% + 5d)

Power Factor: 0.20 to 1.00 (±3°)

Harmonics: 1 to 25 (±5% + 20d)

Active Power Energy: 99.9kWh (±3% + 5d)

Apparent Power Energy: 99.9kVAh (±3% + 5d)

Reactive Power Energy: 99.9kVARh (±3% + 5d)

AC/DC Voltage: 1000V

Resistance: 60MΩ

Temperature: -40 to 1800°F (-40 to 1000°C)

Capacitance: 6mF

Frequency: 10kHz

Duty Cycle: 10.0 to 90.0%

Continuity: <50Ω

Lo Z Mode: Yes

NCV Detector: >90V

Peak Capture: >1ms

Inrush Current: 100ms

Memory: 12,000 readings

Power: (3) AAA batteries

Safety Category: CAT IV-600V

Dimensions: 9.4 x 3.1 x 2" (239 x 80 x 49mm)

Weight: 112.3oz (350g)
