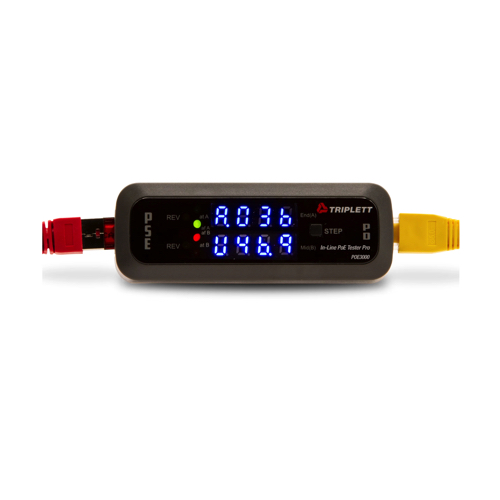

Triplett POE3000 In-line PoE Tester Pro (36 ~ 60V; 11 ~ 60V)

Connector Interface: 2X RJ45 (PSE & PD Test Jacks)

Voltage Range: Standard PoE: 36 to 60V; Non-Standard: 11 to 60V

Max Current (based on 50V): 990mA/50W per mode; Total 2A/100W

Function Selection Mode: T Mode: for detecting PSE status

N Mode: for determining non-standard PoE + inline testing

I Mode: for testing & monitoring real-time power status

Display:

4 LEDs indicate IEEE802.3af or 802.3at/bt standard

Dual 7-digit LEDs indicate power source either end (A) Span (1/2, 3/6) or Mid (B) span (4/5, 7/8) or both for bt

2 Yellow LEDs indicate reversed polarity for power type

Display alternates between Voltage, Current and Power

Step Button: For selecting specific data to display

Power: Uses system power when connected to a device

Dimensions/Weight: 3.9 x 1.4 x 1 ” (99 x 36 x 26mm)/1.6oz (45.4g)
