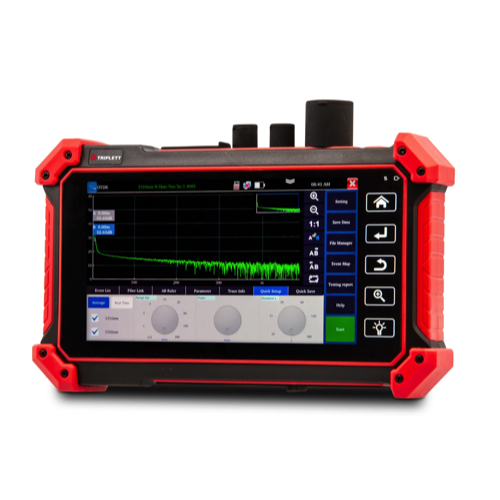

Triplett OTDR1315 Professional Multi-Function OTDR/Network Tool (26/24dB; 200km)

Display: 5.5" OLED, 1280 x 720 resolution

Mode: Single mode

Interface Type: SC-UPC

OTDR Wavelength: 1310/1550

Dynamic Range: 26/24dB

Event Blind Zone: ≤1.6m

Attenuation Blind Zone: ≤8m

Testing Range: 200km

Optical Power Meter: -70~+6dbm

Visual Fault Locator: 10mW laser with 650nm wavelength (8km range)

File Format: SOR standard format/PDF

Memory: Flash (8G); TF Card (64G max not included)

Network Port: 10/100/1000M auto adapt

Network Tools: IP Scan, PPPOE, port flashing, Ping test, FTP server

RJ45 Cable TDR Test: 600m

Cable Tracer: Supports UTP and STP

Cable Length: 3km max

Power: Rechargeable 3.7V 4000mAh Li-Po battery

Dimensions: 7.2 x 4.3 x 1.4" (183 x 110 x 36.5mm)

Weight: 1lbs (0.45kg)
