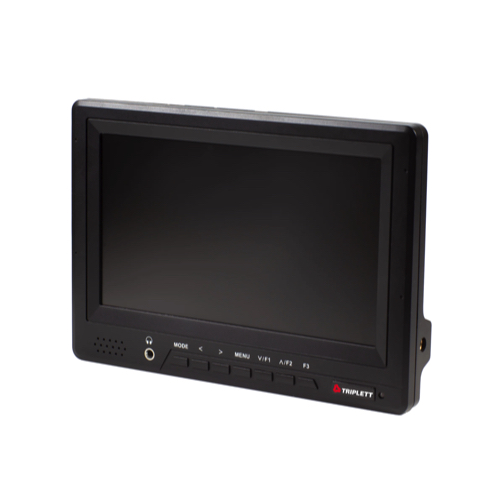

Triplett HDCM-4K Ultra Compact HDMI 4K 7" Monitor (800 x 480 ~ 1920 x 1080)

Screen Size: 7” TFT LCD

Backlight Lamp: LED Backlight

Resolution: 800 xx 480 up to 1920 x 1080

Aspect Ratio: 16:09

Brightness: 450cd/m2

Contrast: 500:01:00

Viewing Angle: 70°/70° (L/R), 50°/70° (U/D)

Display Mode: 480i/p, 576i/p, 720p (50/60Hz) PAL/NTSC

Software Functions: Canon 5D II Camera Mode, Center Marker, Screen Marker, Aspect Ratio, Color Mode, Underscan/Overscan

Function Keys: Left, Right, Menu, Up, Down, Mode, Power

Audio: 1 BNC input; 3.5mm earphone jack; Built-in 1W speaker in front panel

Power: 100 to 240VAC, rechargeable battery, or 12VDC (XLR Connector)

Dimensions/Weight: 7.4 x 5.2 x 1.2” (188 x 130.7 x 31mm) / 1lb (0.45kg)
