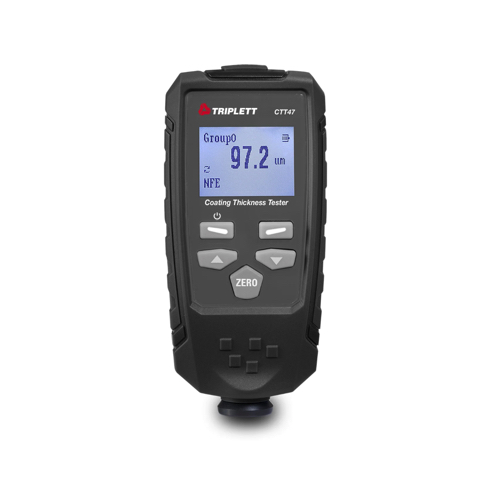

Triplett CTT47 Coating Thickness Tester With USB (0 ~ 1350μm)

Measuring Range: Ferrous: 0 to 1350μm (0 to 53mils); Non-Ferrous: 0 to 1350μm (0 to 53mils)

Resolution: Ferrous: 0.1μm (0.004mils); Non-Ferrous: 0.1μm (0.004mils)

Accuracy:  Ferrous: ±2.5%; Non-Ferrous: ±2.5%

Minimum Curvature Radius: Ferrous: 1.5mm (59.06mils); Non-Ferrous: 3mm (118.1mils)

Minimum Diameter: Ferrous: 7mm (275.6mils); Non-Ferrous: 5mm (196.9mils)

Minimum Thickness: Ferrous :0.5mm (19.69mils); Non-Ferrous: 0.3mm (11.81mils)

Sample Rate: Selectable 1 second to 24 hours

PC Interface: USB port

Power: 2 AAA batteries

Dimensions:  4.7 x 2.4 x 1.25” (120 x 62 x 32mm)

Weight: 6.8oz (175g)
