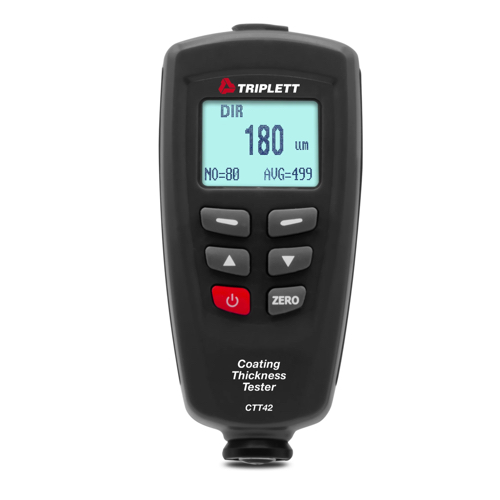

Triplett CTT42 Coating Thickness Tester (0 ~ 1250μm; 0 ~ 49mils)

Measuring Range: Ferrous: 0 to 1250μm; 0 to 49mils; Non-Ferrous: 0 to 1250μm; 0 to 49mils

Resolution: Ferrous: 0.1μm (0.004mils); Non-Ferrous: 0.1μm (0.004mils)

Accuracy: Ferrous: ±3%; Non-Ferrous: ±3%

Minimum Curvature Radius: Ferrous: 1.5mm (59.06mils); Non-Ferrous: 3mm (118.1mils)

Minimum Diameter: Ferrous: 7mm (275.6mils); Non-Ferrous: 5mm (196.9mils)

Minimum Thickness: Ferrous: 0.5mm (19.69mils); Non-Ferrous: 0.3mm (11.81mils)

Sample Rate: Selectable 1 second to 24 hours

PC Interface: USB port

Power: 2 AAA batteries

Dimensions: 4.3 x 2.0 x 1.0” (110 x 50 x 23mm)

Weight: 3.9oz (100g)
