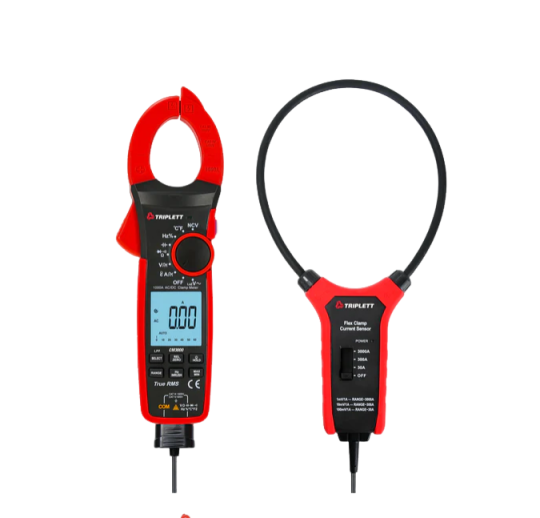

Triplett CM3000-NIST AC/DC Clamp Meter with 3000A AC Flex Clamp (True RMS, 1000ADC, 3000AAC, NIST certification)

True RMS: Yes

Display counts: 6000 count with analog bargraph

AC Current: 1000A

ACA Accuracy: ±2%

DC Current: 1000A

AC/DC Voltage: 1000V

Resistance: 60MΩ

Temperature: -40 to 1832°F (-40 to 1000°C)

Capacitance: 60mF

Frequency: 1MHz

Duty Cycle: 10.0 to 90.0%

Continuity: <50Ω

Lo Pass Filter (LPF): Yes

Lo Z Mode: Yes

NCV Detector: >50V

Inrush Current: 100ms

18" (45.7cm) Flex Clamp Sensor: 30A/300A/3000A AC

Safety Category: CAT IV-600V

Power: (3) AAA batteries

Dimensions: 10.7 x 3.2 x 1.7" (272 x 81 x 43.5mm)

Weight: 14.8oz (420g)

Datasheet

Manual
