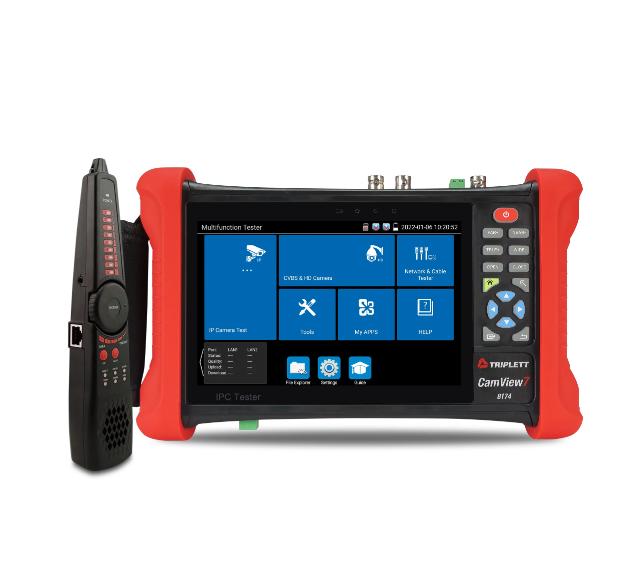

Triplett 8174 Camera Tester with 2.4G Spectrum Analyzer (12V DC/3A)

Display Size: 7 inch touch screen with retina display

Display Resolution: 1920 x 1200 resolution

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto detect)

Analogue video level meter, peak video signal level, SYNC signal level, Color bar

Chroma level measurement

PTZ control, RS485 control, Baudrate 600-115200bps

CVBS loop test: Send and receive color bar generator signal, check BNC cable

IP camera test: IP Discovery / Quick ONVIF / IPC test / IPC viewer / RTSP Player / Client APK / Auto HD - Auto Detect Type

Rapid Video: Auto Login to view the video and create test report

IP & CVBS test: Test IP & CVBS video simultaneously, utilizing dual test window feature

Coaxial HD test (auto HD automatically recognizes the type of HD Signal)               :

8MP AHD test, 3840 x 2160P 15 fps

8MP TVI test, 3840 x 2160P 15 fps

8MP CVI test, 3840 x 2160P 12.5/15fps

HD-SDI/Ex-SDI Camera Testing

HDMI input: 1 channel HDMI input, supports up to 4K

Zoom Image: 4x zoom to enlarge on screen image, screen snapshot, screen record, save, view, record & play back video

Color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable, 24V DC 2A Power Out

HDMI output: 1 channel HDMI output, supports up to 1080P for testing HDMI input of monitor

Power output:

12V DC/3A Power Output

48V PoE power output, max power 24W

5V/2A USB power output

Cable tracer: Trace BNC, network and telephone cables

UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. (max range 180m)

Network Test: Trace route, Link monitor, DHCP server, port flashing, ping test

Wi-Fi: Built in WiFi, 150M speeds

Audio Test: 1 channel audio signal input, to test if sound is normal, 1 channel audio signal for headphones

Data Monitor: Captures and analyses the command data from controlling device; can also send hexadecimal data

PoE test: Measures POE switch or PSE power supply voltage and cable connection status

External power supply: DC 12V 2A

Battery Built-in 7.6V Lithium polymer battery, 7800mAh

Rechargeable battery life: 3.5-4 hour charge, achieves up to 16 hours operation

Operation setting: OSD menu, select your desired language: English, Chinese, Korean,Russian, Italian, French, Polish, Spanish, Japanese, etc.

Auto power off: 1-30 mins

TesterPlay: Screen projection: tester, mobile phone and PC display at the same time (for android version mobile phone)

Wi-Fi Analyzer: Detect the surrounding wi-fi signal and signal strength, supports 2.4G frequency band

Drop-down Menu: Select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface

Dimensions/Weight:  9.4 x 6.1 x 1.8" / 1.4lbs (240 x 154 x 46 / 620g)
