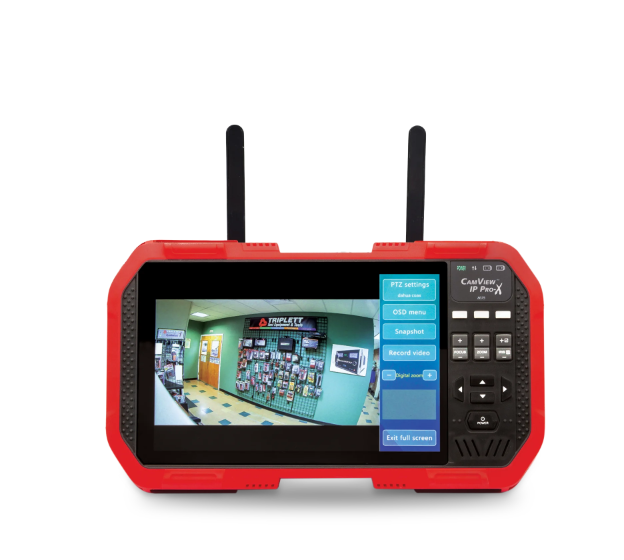

Triplett 8075 IP and Analog Security Camera Tester (12V/2A)

IPC Protocol: ONVIF, RTSP, RTP

Ethernet Test: 10/100M/1G detect; Loop detect; DHCP client & server; traffic detect; datalink quality detect

IPC Test: Discover the device, real time video, camera config, PTZ test, discover ONVIF device

WiFi Test: S Support 2.4G & 5G; WiFi connection; WiFi list; Delay detection; packet loss rate test

Spectrum Test: Spatial frequency band signal scanning & detection; spatial noise signal detection

POE Test Power: PSE test -The tester supplies power (25W) / PD test-receives the power (802.3af/802.3at)

Analog Video Test: NTSC/PAL/HD-CVI 3.0/AHD 3.0/HD-TVI 3.0 Video In/Out BNCs; supports 8 level digital zoom

HDMI Signal Test: Can receive 720p, 1080p; Can transmit various test images 720p & 1080p

12V Power Output: 12V/2A output interface

TDR Test: Test network cable (4 pair) length; Max 427 to 656ft (130 to 200m); Accuracy 3.3ft (1m)

Coaxial PTZ Control Test: CVI protocol (Dahua); AHD protocol (Pelco c); TVI protocol (Hikvision)

485 PTZ test: More than 30 protocols

Display: 7” TFT touchscreen , 1920 x 1200, 16.7M colors

Power: (2) Lithium-ion batteries; 10 hour work time

Dimensions/Weight: 9.3 x 5.2 x 1.8” (236.5 x 133.4 x 45.4mm) / 2lbs (907g)
