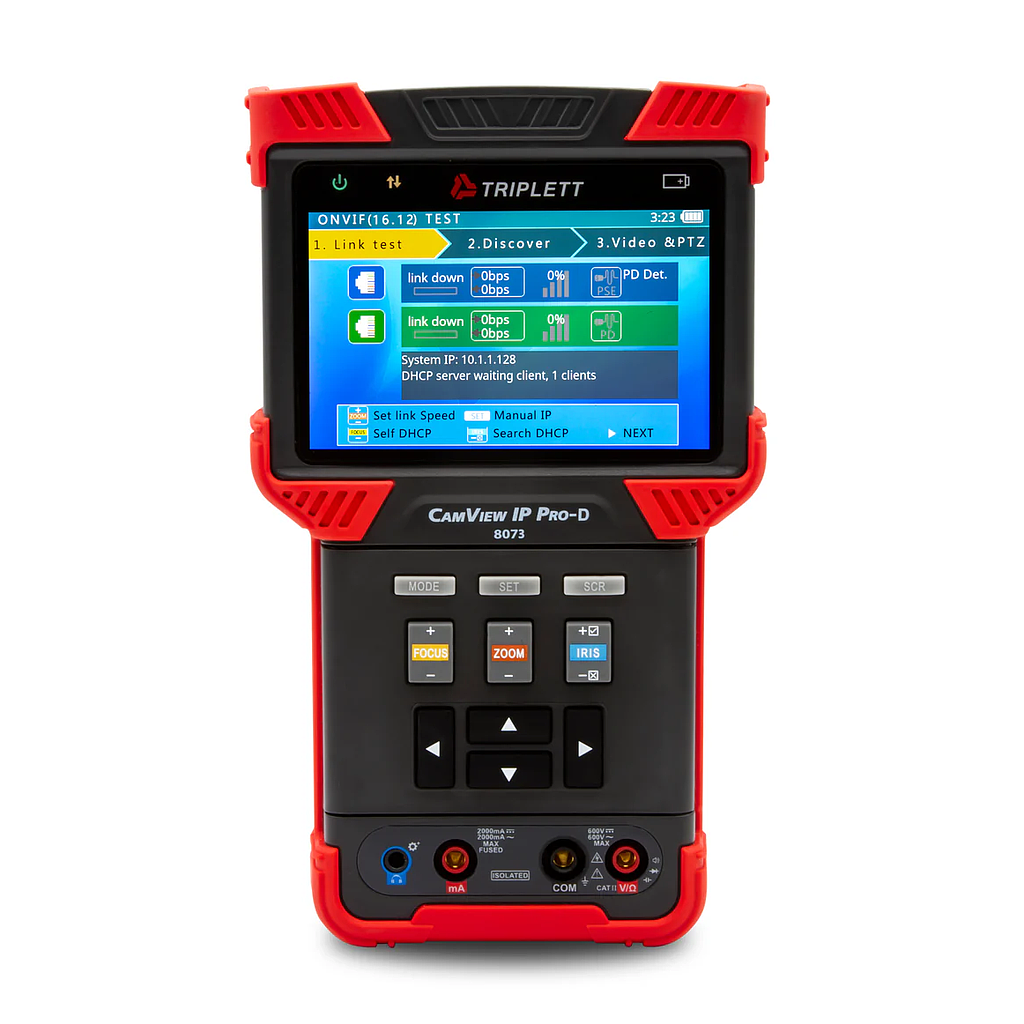

Triplett 8073 IP and Analog Security Camera Tester (12VDC, 15W, 1080P 30fps)

ENCODING: SD Analog, AHD 2.0, AHD 3.0, HD-CVI 2.0, HD-CVI 3.0, HD-TVI 2.0, HD-TVI 3.0, IP (ONVIF only), H.264,  H.265

FEATURES:

DHCP Server

MJPEG

12VDC Output

POE Output: 15W

TDR Testing: Ethernet only

Digital Multimeter

RS485 PTZ

Digital Zoom

Data Moniter

Analog Video Generator

HD Video Generator: up to 1080P 30fps

Record Snapshot

Record Video

Camera Report: IP only

Keyboard: Full QWERTY

Flashlight

PHYSICAL FEATURES:

Screen: Backlit 4” 16.7M color TFT

Resolution: 800 x 480

INPUTS: BNC, RJ45

OUTPUTS: BNC, RJ45, USB Mini

Dimensions: 7.5 x 4.4 x 1.5” (190 x 113 x 37mm)

Weight: 3.5lbs (1.6kg)
