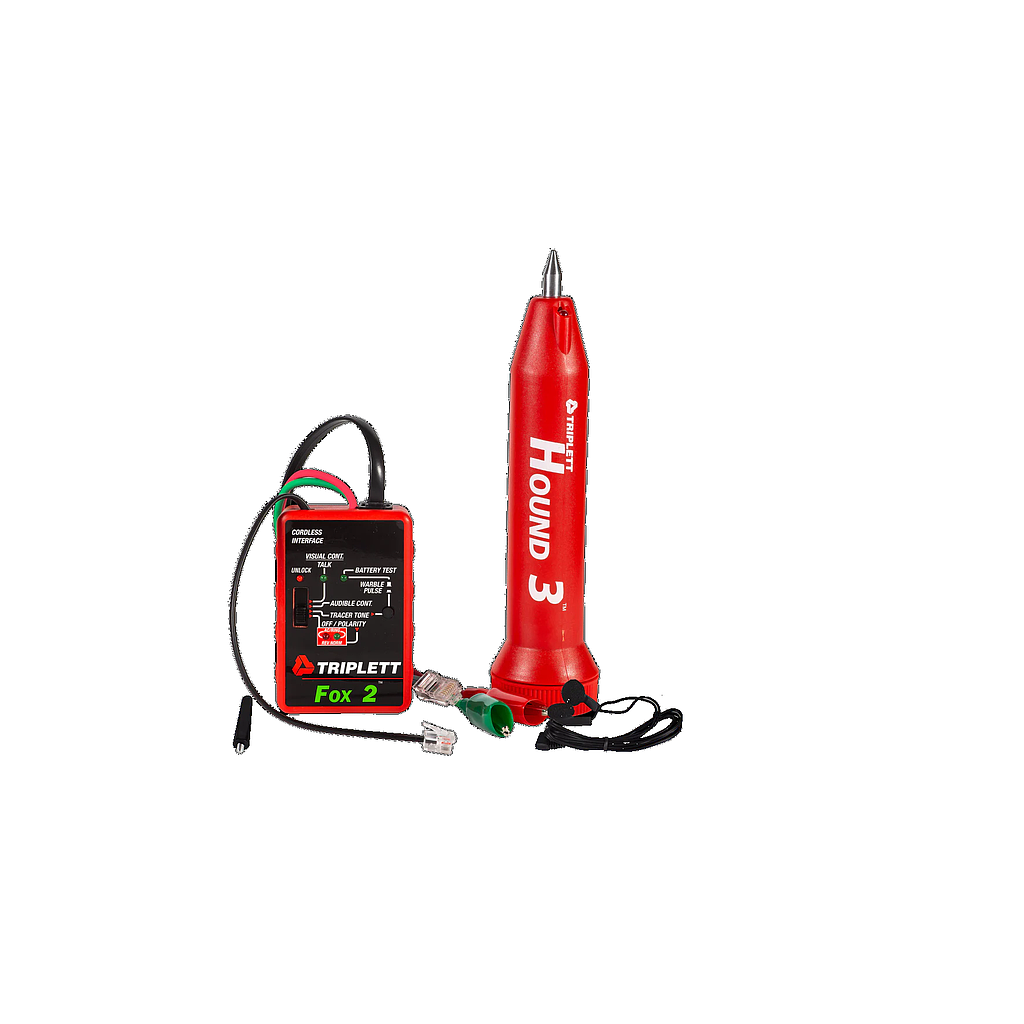

Triplett 3399 Tone & Inductive Amplifier Probe Kit (400kHz ~ 500kHz RF)

Hotwire Fox

Operating Frequency (RF): 400kHz to 500kHz

Operating Frequency (AF): 800Hz to 2400Hz

Output Voltage (RF): adjustable 5vpp to 30vpp (open circuit)

Output Voltage (AF): fixed 10vpp (open circuit)

Tracer Tone: Warble or Pulsed, High or Low Pitch

Max. AC/DC Live Voltage: 250V

Continuity Test: upto 5,000 ohms with audible beeper

AC Voltage Test: 30VAC to 250VAC

DC Voltage Test: Positive applied to red test lead 40VDC to 250VDC

Dimensions: 3.5 x 4.5 x 1.5"

Weight: 7 oz.

Hotwire Hound

Operating Frequency (RF): 400kHz to 500kHz

Signal Indicators: Speaker outputs Tracer signal and LED indicates signal strength

Earphone Jack: Accepts 1/8" mono or stereo earphone plug (mutes speaker)

Headlights: 2 High Brightness White LEDs

Dimensions: 1-7/8" dia at speaker; 1-3/8" dia at body; 7.5" long

Weight: 9 oz.
