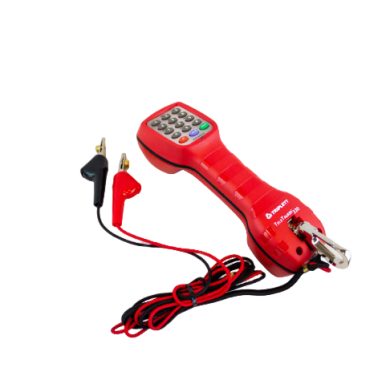

Triplett 3330 Linemen's Test Set: Test Analog and POTS Phone Line and Systems (1 vpp, HD-CVI 3.0)

Analog and HD Video Testing

Video Format: Auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0

Test Pattern: Generates NTSC/PAL, HD-CVI, HD-TVI, or AHD test patterns (720P/1080P)

Signal Level: 1vpp

Input/Output: Video IN BNC, Video OUT BNC

Digital Zoom: Supports 8-level portion view

Capture: Take snap shot or record video

Power Output

Output: 12V/1A power output to camera. Connector is 4mm diameter; pin is 1.6mm diameter

System

Screen: 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight with adjustable brightness

Operation: Power key, 13 control keys

Language: User selectable -- English, French, Spanish, Russian, Chinese

Auto Shut-off: Disable / 5~60 minutes

Software: Supports online upgrade through USB using a Windows computer

Power

Charger: 12V/1A (5.5mm) power supply

Battery: Dedicated battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 10.4Wh

Battery runtime: Approximately 5 hours

Power Saving: Auto power off; Real-time battery level indicator

Other

Storage: 8GB flash built in; use micro USB port to connect external device

LED Light: (2) 35lm LED lights

Dimensions: 6.9 x 4.4 x 1.5” (175 x 113 x 37mm)

Weight: 3.5lbs (1.6kg)
