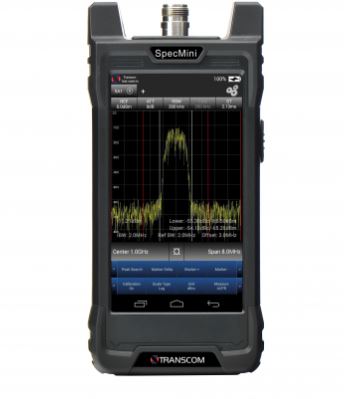

Transcom T8142 SpecMini handheld spectrum analyzer (10MHz-4,200MHz)

Measurement ACPR，CH Power, OBW, Phase Noise, and N dB Bandwidth
Trace
3 Trace: A, B and C
Trace operation: Clear/Write, Maxhold, Minhold, Average, View ,Hide
Sweep Continuous/single
Trigger
Free
Video (zero span)
Marker
8 maximum,surport 1 reference with 7 Delta Markers
Peak Search , Marker Delta,Marker+, MarkerSpan
0Hz, 100Hz-4.2GHz
Freq Slip, Span Zoom (1-2-5-10 series, 4GHz, 4.2GHz)
Scale
Log/Lin
Log: 0.1 to 1, 0.1 step
Lin: 1 to 10, 1 step
Unit dBm, dBuV, dBV, W, mW, uW, pW, V, mV, uV
Span
0Hz, 100Hz-4.2GHz
Freq Slip, Span Zoom (1-2-5-10 series, 4GHz, 4.2GHz)
Scale
Log/Lin
Log: 0.1 to 1, 0.1 step
Lin: 1 to 10, 1 step
Unit dBm, dBuV, dBV, W, mW, uW, pW, V, mV, uV
Sensitivity Low, Medium and High
Detector Positive,Negative,Sample,Average,RMS
Ref Level Offset -50dB to 50dB
Multi-Screen 4 Maximum
Frequency range 10MHz to 4.2GHz
Frequency reference Aging rate: ±1ppm
Frequency readout accuracy ± (readout frequency x frequency reference accuracy + RBW centering + 0.5 x
horizontal resolution
Frequency span accuracy ± 1%
Sweep time
1.1ms-1600s
2.69ms-1600s, zero span
