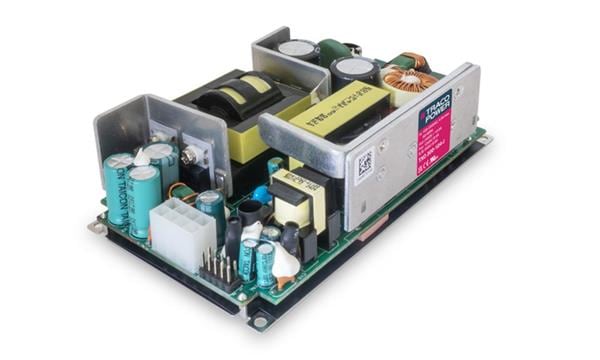

TRACO Power TXO 300-124-J Switching Supplies 300W 24V 12.5A 5x3 Open Frame

Width: 76.2 mm (3 in)

Height: 7.4 mm (0.291 in)

Length: 127 mm (5 in)

Industry: Industrial

Dimensions: 127 mm x 76.2 mm x 7.4 mm

Efficiency: 88 %

Unit Weight: 420 g

Output Power: 300 W

Input Voltage: 90 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
