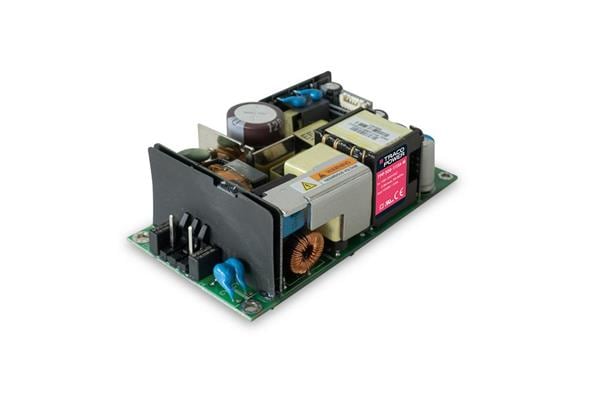

TRACO Power TPP 300-115A-M Switching Supplies 300W 15V 20A Medical 4" x 2" open frame

Width: 62 mm (2.441 in)

Height: 39.7 mm (1.563 in)

Length: 116.8 mm (4.598 in)

Industry: Medical

Unit Weight: 210 g

Output Power: 300 W

Input Voltage: 85 VAC to 264 VAC, 100 VAC to 240 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 15 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
