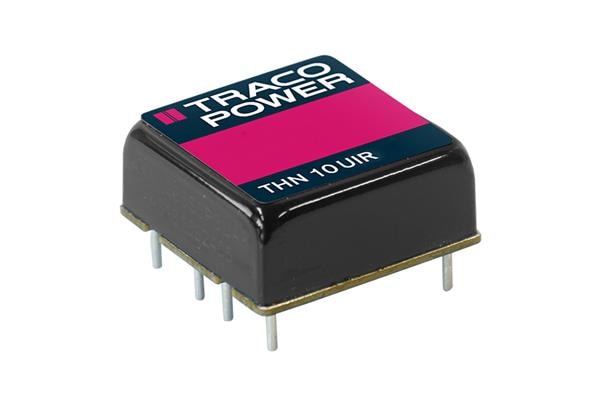

TRACO Power THN 10-7222UIR Isolated 10W 14-160Vin +12Vout 416mA, -12Vout 416mA 1x1 metal case

Width: 25.4 mm (1 in)

Height: 9.9 mm (0.39 in)

Length: 25.4 mm (1 in)

Industry: Industrial

Unit Weight: 16.100 g

Output Power: 10 W

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 2 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 14 V

Input Voltage, Nominal: 72 V

Output Current-Channel 1: 416 mA

Output Current-Channel 2: 416 mA

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
