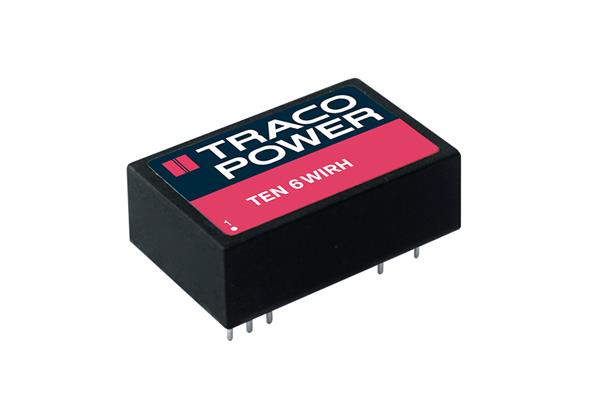

TRACO Power TEN 6-11011WIRH Isolated 6W 36-160Vin 5V 1.2A, 4000 VAC Isolation, Railway, DIP24

Width: 20.3 mm (0.799 in)

Height: 10.6 mm (0.417 in)

Length: 31.8 mm (1.252 in)

Industry: Industrial

Unit Weight: 14 g

Output Power: 6 W

Input Voltage: +/- 36 VDC to +/- 160 VDC

Mounting Style: Through Hole

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 110 V

Output Current-Channel 1: 1.2 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
