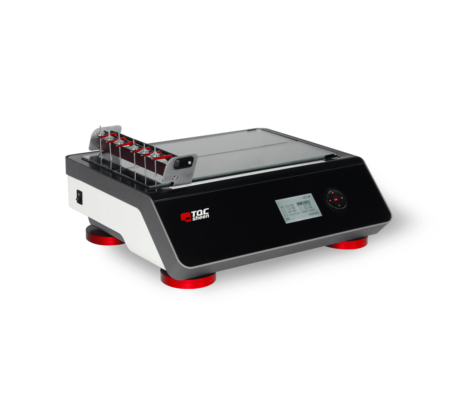

TQCSheen AB3600 Drying Time Recorder (1min~200hrs)

Operating temperature: -20°C to +70°C / -4°F to 158°F (non-condensing)

Drying time range: 1 min to 200 hours

Time accuracy: <1% of set time

Maximum track length: 300mm

Maximum number of tracks: 6

Force per needle: 3.5g/0.03N

Weight of additional weights: 5g

Diameter of needle: 2 mm

Radius of needle: 1 mm

Material: Stainless steel, powdercoated steel, anodised aluminium, nylon, glass

Dimensions (DxWxH): 335 mm x 400 mm x 190 mm (13.18 in x 15.74 in x 7.48 in)

Net weight: 9.5kg

Power supply: 24 VDC

Power consumption: Max. 40 Watt

Display: 128 x 64 pixels graphical LCD, 70 mm x 40 mm, white illuminated

Scope of supply:

• TQC Drying Time Recorder

• 24V Adapter

• Six Needles

• Six Weights (5g each)

• Two Glass Beds

• Power Cord and Adapter 24 VDC

• Manual

Accessories

AB3602 Narrow glass beds 305x25x3mm, set of 12 pcs

AB3627* Narrow glass bed adapter

(for use with 6 narrow glass beds AB3602)

VF1590 TQC Triple Reservoir Film Applicator , 90µm/150µm

AB3700 TQC Cube Applicator, gaps 38 & 76µm

AB3701 TQC Cube Applicator, gaps 50 & 100µm

AB3702 TQC Cube Applicator, gaps 75 & 150µm

AB3703 TQC Cube Applicator, gaps on request (µm)

AB3705 TQC Cube Applicator, gaps 1,5 & 3 mil

AB3706 TQC Cube Applicator, gaps 2 & 4 mil

AB3707 TQC Cube Applicator, gaps 3 & 6 mil

AB3708 TQC Cube Applicator, gaps on request (mil)
