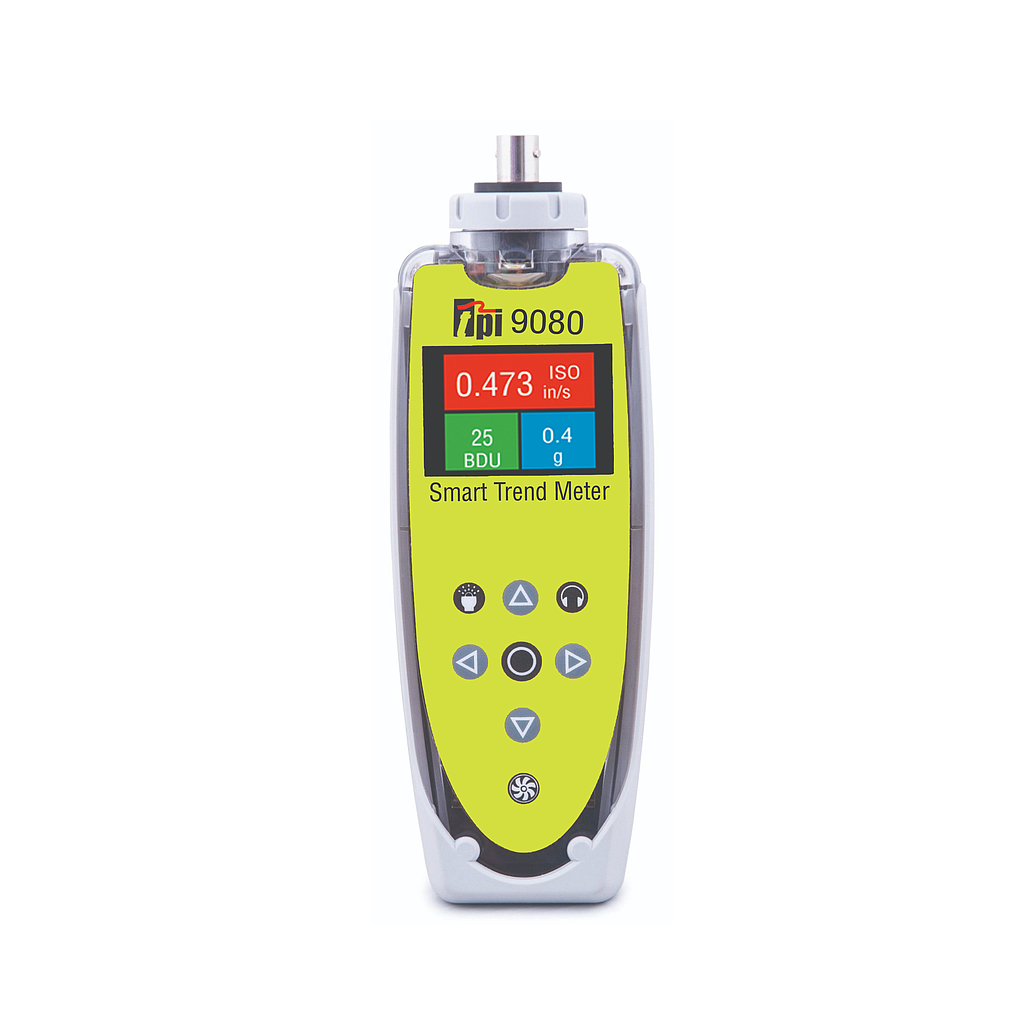

TPI 9080 Vibration Analyzer

Size: 200 mm x 60mm x 26mm

Weight: 280g (not including magnet)

Environmental:

Water, Sand & Dust: IP67 Waterproof

Operating: 0°C to 50°C

Storage: -20°c to 70°C

Power supply: 2 x AA batteries

Battery life: Auto power OFF - typically 20 hours continuous operating time

depending on brightness setting.

Frequency range: 2 Hz to 1kHz (ISO) 1 kHz to 10 kHz (BOU)

Max frequency resolution:

1.25 Hz @ 800 lines FFT setting

Acceleration in g

Velocity in mm/s (or inch/s)

Bearing noise in BOU (bearing damage units)

Displacement (mm, microns, inch)

Displayed Frequency Units: Hertz (Hz), RPM or CPM

Input range: User selectable with accelerometer sensitivity

Dynamic range: 96 dB (0.01g resolution)

VA diagnostic bands (RPM = run speed):

Unbalance 1x RPM

Alignment 2x RPM

Looseness 3x RPM

Accessories:

• A9081 PC docking cradle - USB connection

• A9087 Nylon carrying case

Options

• A9082 Strobe attachment

• A9080 Bluetooth ear defenders/headphones

• A9084 100mm (4 inch) stinger

• A9084 Vibtrend software full version
