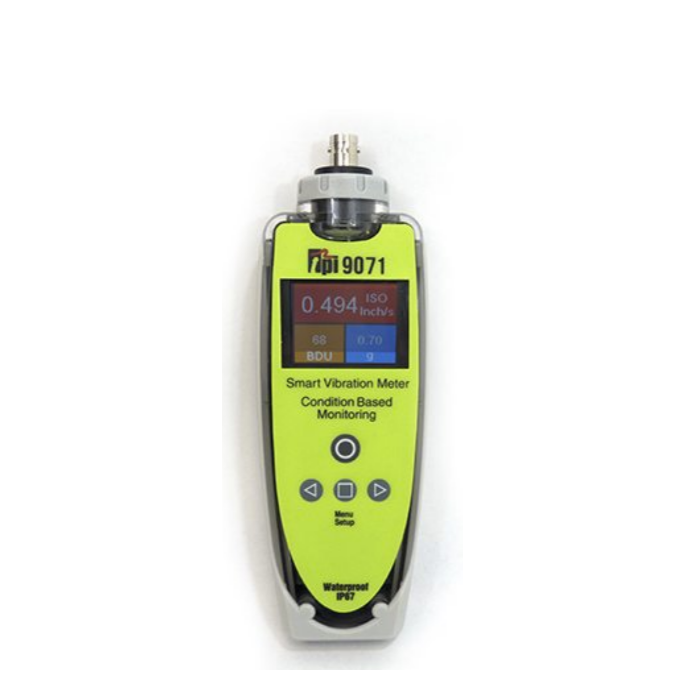

TPI 9071 Vibration Analyzer

Size: H 7.95” W 2.36” 200 mm x 60mm x 26mm

Weight: 9.8oz (280g)

IP67 Waterproof

Operating: 32°F to 122°F (0°C to 50°C)

Storage: -4°F to 158°F (-20°C to 70°C)

Power Supply: 2xAA batteries

Battery life: Approximately 50 hours of normal use

Frequency ranges: 2/10Hz ~ 1kHz ISO

2Hz ~ 10kHz Total g

1kHz ~ 10kHz Bearing Analysis

Frequency resolution: 100/800 lines

Displayed amplitude units:g, inch/s or mm/s, BDU

Displayed frequency units: Hz, CPM or RPM

Input range: +/- 50 g

Dynamic range: 72 dB

Auto set up of VA bands: Yes

Accelerometer connection: BNC connector cable with removable magnet (1mV/g – 10,000mV/g)
